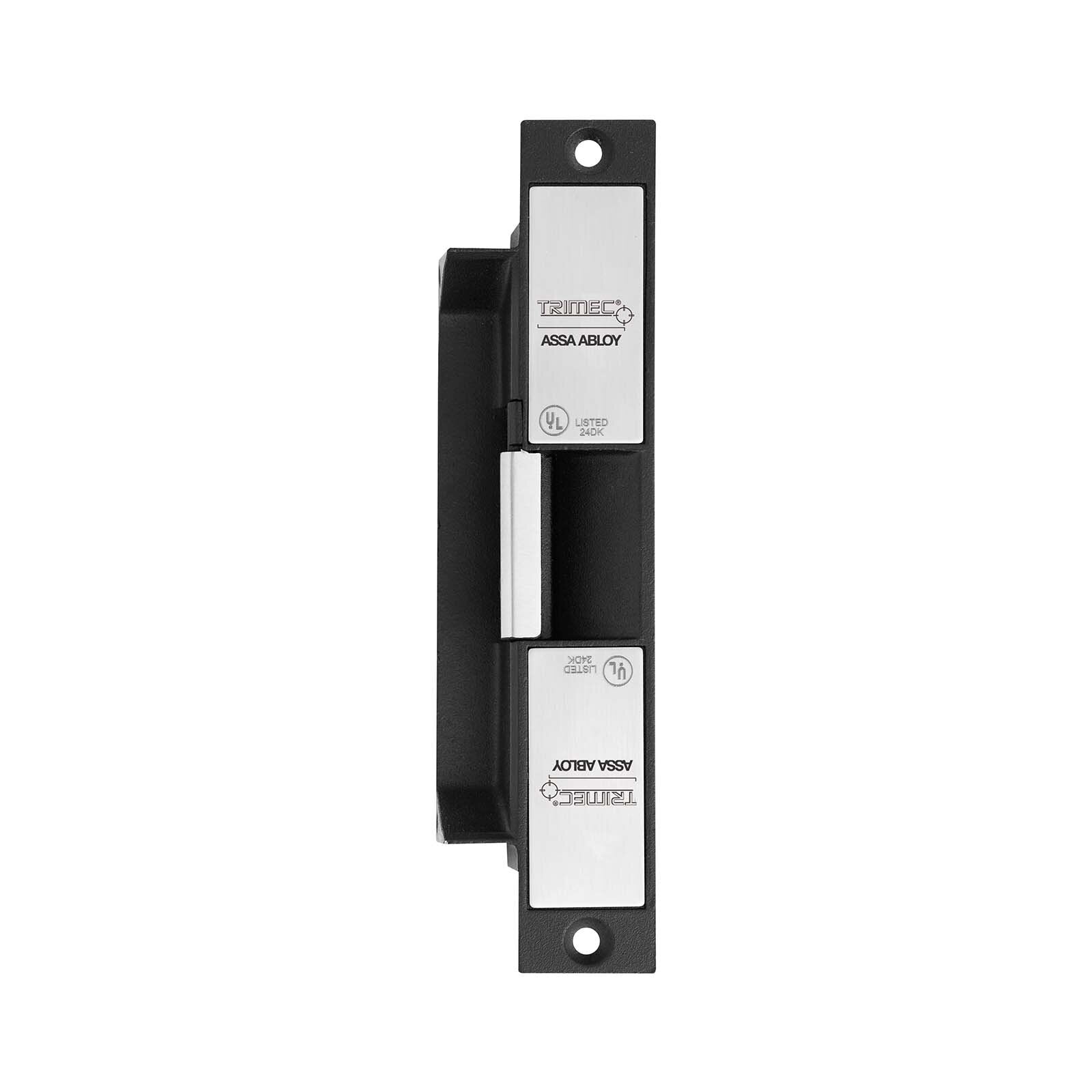

Trimec Series Electric Strike 12VDC

Name: Trimec Series Electric Strike 12VDC
Brand: Trimec
SKU: ES200-TRIMEC
Availability: InStock

by Trimec

Please login to view price

SKU ES200-TRIMEC

Please login to Add to Cart

Fail safe/fail secure changeable on site
High security
Fire Rated
850kg holding force
1 million cycles endurance rating
Cast stainless steel body
Stainless steel locking pins
Low Current consumption - 175mA @12Vdc after 1 second
Mounting kit supplied as standard
Australian designed
High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
S3 (Security) Australian Lock Standard (AS4145.2.· 2008)
D3 (Durability) Australian Lock Standard (AS4145.2· 2008)
BS 5872 Approved
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
Approved to UL1034 (highest level)
CE approved (EMC, ROHS & REACH)
Regulatory Compliance Mark (RCM) approved

Voltage
12 or 24Vdc

Current
175 mA @ 12Vdc - 88 mA @ 24Vdc

Solenoids
Solenoids are rated for continuous use

Monitoring
None

Holding Force
850kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Latch
Suitable for 15mm latch bolt with 3mm door gap

Environment
Operational temperature range -20°C to +60°C

Body
Solid Stainless Steel Construction

Keeper
Stainless Steel

Specification Statement
The strike should be constructed of stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.

Dimensions
