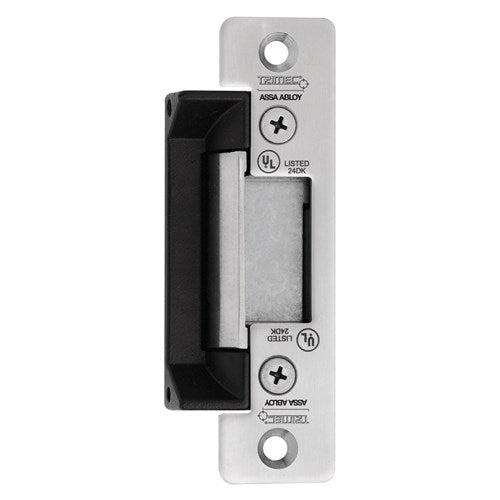

Trimec Series Electric Strike 12VDC, IP56 Weather Resistant

Name: Trimec Series Electric Strike 12VDC, IP56 Weather Resistant
Brand: Trimec
SKU: ES110-TRIMEC
Availability: InStock

by Trimec

Please login to view price

SKU ES110-TRIMEC

Please login to Add to Cart

Trimec ES110 Series Electric Strike

All models IP56 Weather resistant
Fail safe/fail secure changeable on site
Stainless steel striker for extra strength and durability
Stainless steel locking pins
Multi Voltage 12VDC & 24VDC
Optional mounting kit
Installation template
Suitable For 18mm latch with a 3mm door gap
Exposed areas
High traffic areas
Open in/open out doors
Suitable for use with all access control systems
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
Approved to UL1034 (highest level)
CE approved (EMC, ROHS & REACH)

Voltage
12Vdc & 24Vdc

Current
250 mA @ 12Vdc - 125mA @ 24Vdc

Solenoid
Solenoids are rated for continuous use.

Monitoring
None

Holding Force
680 kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)

Body
Cast Aluminium Construction

Keeper
Stainless Steel

Latch
Suitable for 18mm latchbolt with 3mm door gap

Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.

Dimensions
