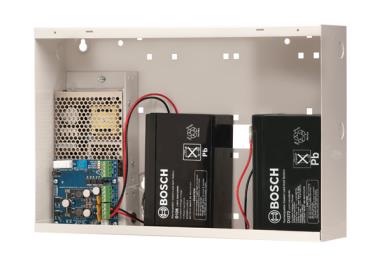

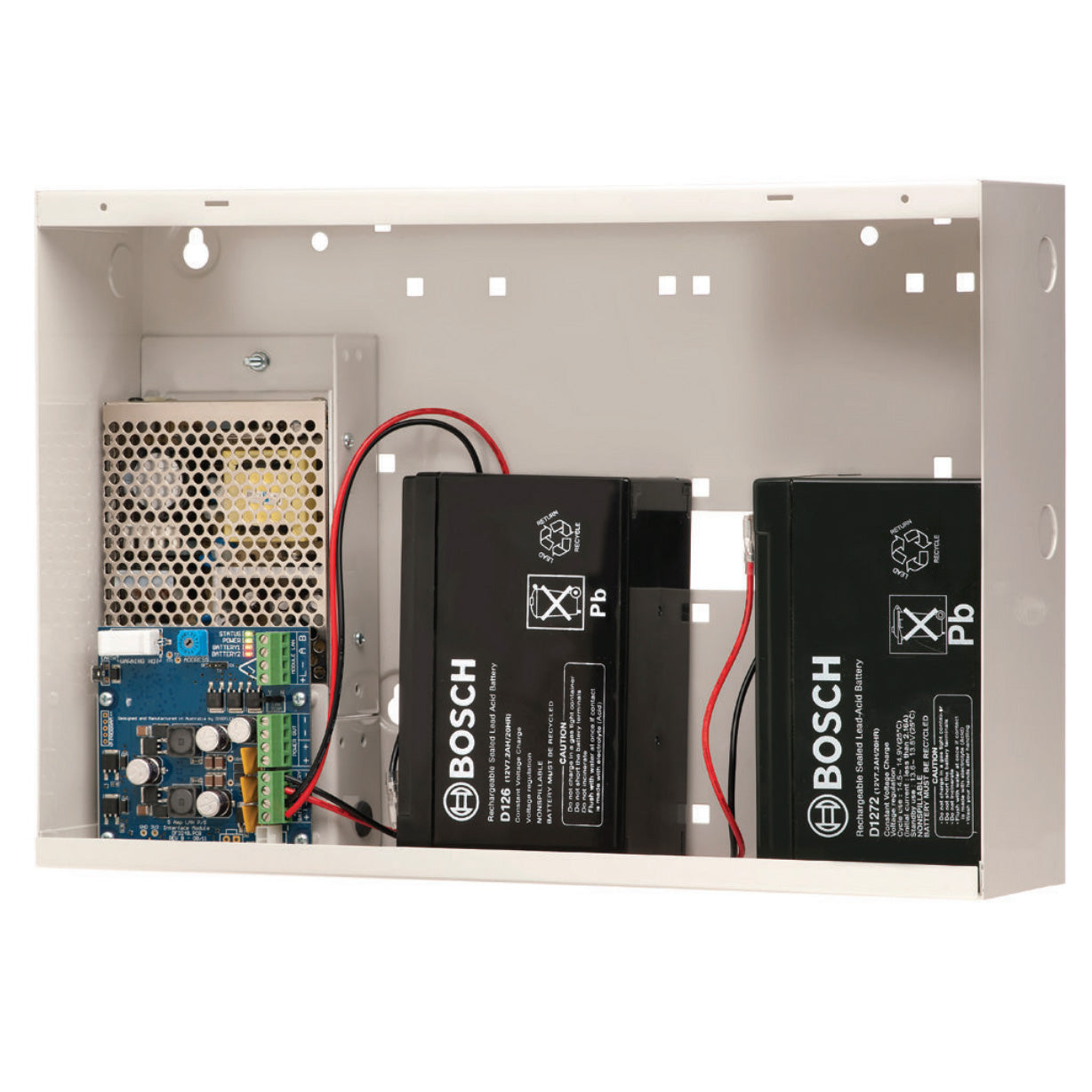

![Bosch Solution 6000 5 Amp LAN Power Supply With 2 x Battery Charger Module](http://zankap.com.au/cdn/shop/files/ebc56859d040dfbc4b8d059bf14ffc55c8137a3e_cc00ec23-573b-4952-afc0-76e06e3b98d4_382x275.jpg?v=1712985344)
Next day delivery
Voltage Input: | 100-240V AC @ 2.0A 50-60Hz |
Stand-by Battery: | Up to 2 x 12V DC 7.2Ah sealed rechargeable battery Panasonic LC-P12R2P or equivalent or 1 x 12V DC 18Ah sealed rechargeable batteryResettable fuse protected @ 6 Amps |
Voltage Output: | 13.8V DC @ 5 Amps (Primary supply source only) |
Battery Discharge Cycle: | AC Off: Keypads indicate trouble condition, AV Fail report resent (if programmed)13.8V DC :Charging level11.5V DC: Low battery trouble at keypads, low battery report sent (if programmed)10.0V: DC Shut down and battery disconnected as voltage falls below 9V DC. |
Battery Recharge Cycle: | AC On: Panel restarts, battery charging begins. AC trouble clears from keypads, AC restore report sent (if programmed).12.8V DC: Battery trouble clears from keypads, battery restore report sent (if programmed).13.8V DC: Battery float charged. |
Connection (RS485 LAN): | Max total LAN length using multi strand security cable = 300mMax total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m |
Temperature: | 0o to 55oC Operating |
Humidity: | 5% to 85% at 30oC non condensing |
Dimensions: | 50(W) x 23(D) x 58(H)mm |
