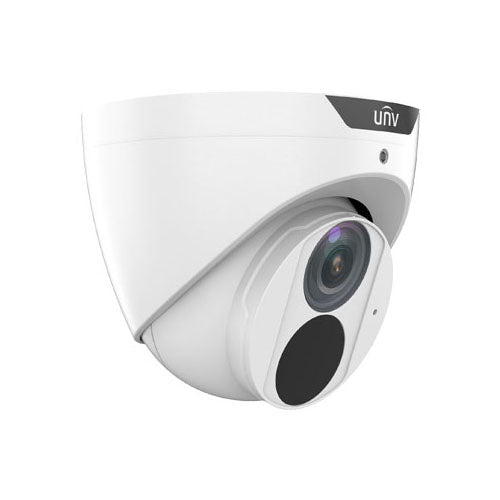

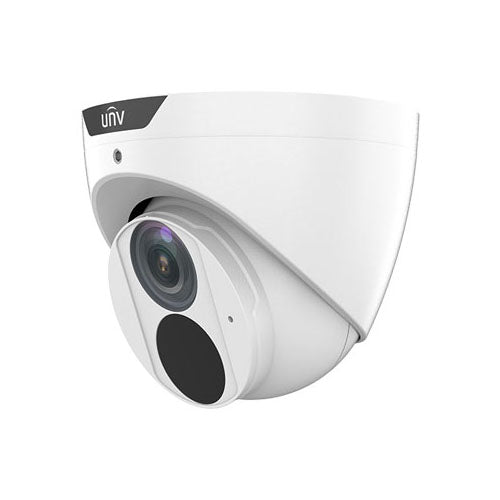

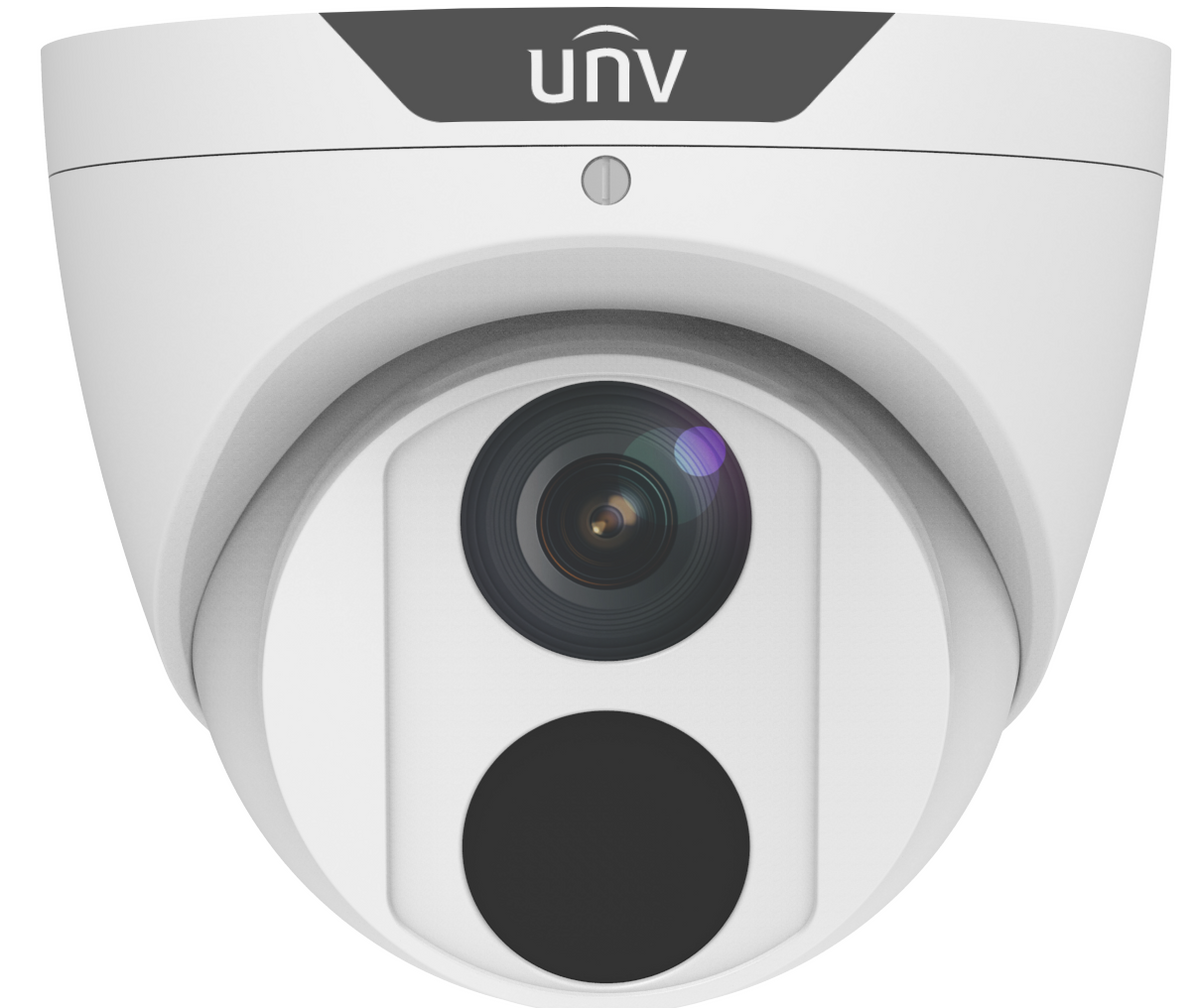

![Uniview 8MP IP Easy AI Series IR Turret Camera, Human Body Detection, EasyStar, 2.8mm, 120dB WDR, 30m IR, Twin Streams, Built-in Mic, POE or 12VDC, IP67 (Wall Mount: TR-WM03-D-IN, Junction Box: TR-JB03-G-IN)](http://zankap.com.au/cdn/shop/products/cfeafb475ef9478f3c3da62613a2d065a87236f0_500x500.jpg?v=1675207943)
Next day delivery
Camera | ||||||
Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||||
Minimum Illumination | Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on | |||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |||||
S/N | >56dB | |||||
WDR | 120dB | |||||
Lens | ||||||
Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal | |||||
Lens Mount | M12 | |||||
Angle of view (H) | 112.9° | 91.2° | ||||
Angle of View (V) | 59.1° | 47.9° | ||||
Angle of View (O) | 121.2° | 95.9° | ||||
DORI | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||
4.0mm | 120 | 48 | 24 | 12 | ||
Illuminator | ||||||
IR Range | Up to 30m (98ft) IR range | |||||
Wavelength | 850nm | |||||
IR On/Off Control | Auto/Manual | |||||
Video | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||
U-code | Supported | |||||
9:16 Corridor Mode | Supported | |||||
OSD | Up to 4 OSDs | |||||
Privacy Mask | Up to 4 areas | |||||
ROI | Up to 8 areas | |||||
Motion Detection | Up to 4 areas | |||||
Image | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
Digital noise reduction | 2D/3D DNR | |||||
Smart IR | Supported | |||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
Dewarping | N/A | |||||
HLC | Supported | |||||
BLC | Supported | |||||
Defog | Digital Defog | |||||
Audio | ||||||
Audio Compression | G.711 | |||||
Suppression | Supported | |||||
Sampling Rate | 8KHZ | |||||
Storage | ||||||
Edge Storage | Micro SD, up to 256 GB | |||||
Network Storage | ANR,NAS(NFS) | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | |||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
Client | EZStation EZView EZLive | |||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
Interface | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
Built-in Mic | Supported | |||||
Certification | ||||||
EMC | FCC: FCC Part 15 | |||||
Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | |||||
General | ||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
Power consumption: Max 4.5W | ||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||
Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | |||||
Weight | 0.36kg (0.79lb) | |||||
Material | Metal + Plastic | |||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
Surge Protection | 4KV | |||||
Reset Button | N/A | |||||
Ingress Protection | Ingression protection: IP67 |
