Ideal and cost-effective protection for SOHO or POS applications
  • Adapted to protect IT applications in home, office and retail environments.
  • A complete range of six models to adapt the power to the equipment’s consumption or to required back-up time.

Easy to use
  • Control panel with graphical icons LCD / LEDs allowing the operating mode to be easily monitored.

A solution for network power cuts and voltage fluctuations
  • The integrated AVR function (Automatic Voltage Regulation) stabilizes the output voltage and avoids the switching to Battery Mode operation, therefore saving the battery to support critical power cut events.

Simplified connection
  • Several IEC 320 sockets (IT standard) simplify the connectivity to computer and IT peripherals.

Protection for your data line
  • Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.

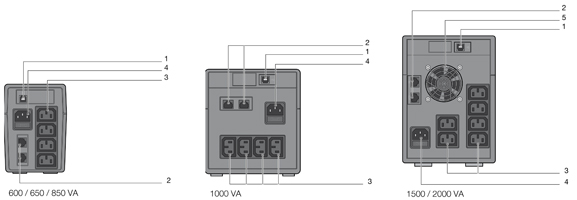

Connections


1. USB serial port
2. NTP data line suppressor
3. UPS output sockets
4. Input socket and fuse
5. Fan / air vents






Control panel




1. Alarm
2. Operation with battery
3. Normal operation
4. On / Off
5. Load present
6. Load level (5 steps)
7. General Alarm
8. Battery fault / Replace the battery
9. Overload
10. Battery capacity
11. Normal mode / Battery mode (flashing)
12. Automatic Voltage / Regulation active






Technical data



Sn600 VA650 VA850 VA1000 VA1500 VA2000 VA
Pn360 W360 W480 W600 W900 W1200 W
Input / output1/1
Input
Rated voltage230 V
Voltage tolerance170 V - 280 V
Rated frequency50 / 60 Hz with automatic selection
Mains connectionIEC320 socket
Output
Automatic Voltage Regulation (AVR)••••••
Rated voltage230 V ±10%
Rated frequency50/60 Hz ±1%
Wave formStep wave
ProtectionOverload, significant discharge and short circuit
Connections4 x IEC 320 (C13)  (1)6 x IEC 320 (C13) (1)
Batteries
TypeSealed lead-acid maintenance free - expected life 3/5 years
Back-up time (2)15 min15 min20 min45 min55 min60 min
Communication
Interface-USB
Local communication software-Local View
Telephone protection-NTP data line suppressor
UPS cabinet
Dimensions W x D x H100 x 300 x 145 mm145 x 345 x 165 mm145 x 390 x 205 mm
Weight5.0 kg5.2 kg6.0 kg9.7 kg11.2 kg12 kg
Standards
SafetyIEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
EMCIEC/EN 62040-2, AS 62040.2
Product declarationCE, RCM (E2376)

(1) Australian standard sockets on Netys PE models specific for Australia.
(2) PC + 17” LCD monitor.

Datasheet
