Classification | Electro-optical combined radio channel security detector |
Type of detector | Wireless |
Installation method | Indoors |
Compatibility | Operates only with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge |
Sensing element | PIR sensor, electret microphone |
Alarm signal delivery time | 0.15 s |
Motion detection distance | Up to 12 m |
Detection angles | Horizontal — 88.5° Vertical — 80° |
Recommended installation height | 2.4 m |
Pet immunity | Weight — up to 20 kg Height — up to 50 cm |
Break detection distance | Up to 9 m |
Detection angle | 180° |
Sensitivity | Adjustable, 3 levels |
Power supply | Battery: CR123A battery Power supply voltage: 3 V Battery life — up to 5 years |
Jeweller radio technology | Communication range with central unit — up to 1,200 m in an open space Two-way communication between devices Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s |
Temperature sensor | Available |
Operating temperature range | From -10°С to +40°С |
Permissible humidity | Up to 75% |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
Remote setting and testing | Yes |
Dimensions | 110х65×50 mm |
Weight | 92 g |
Certification | Grade 2, CE |
Warranty | Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty. |

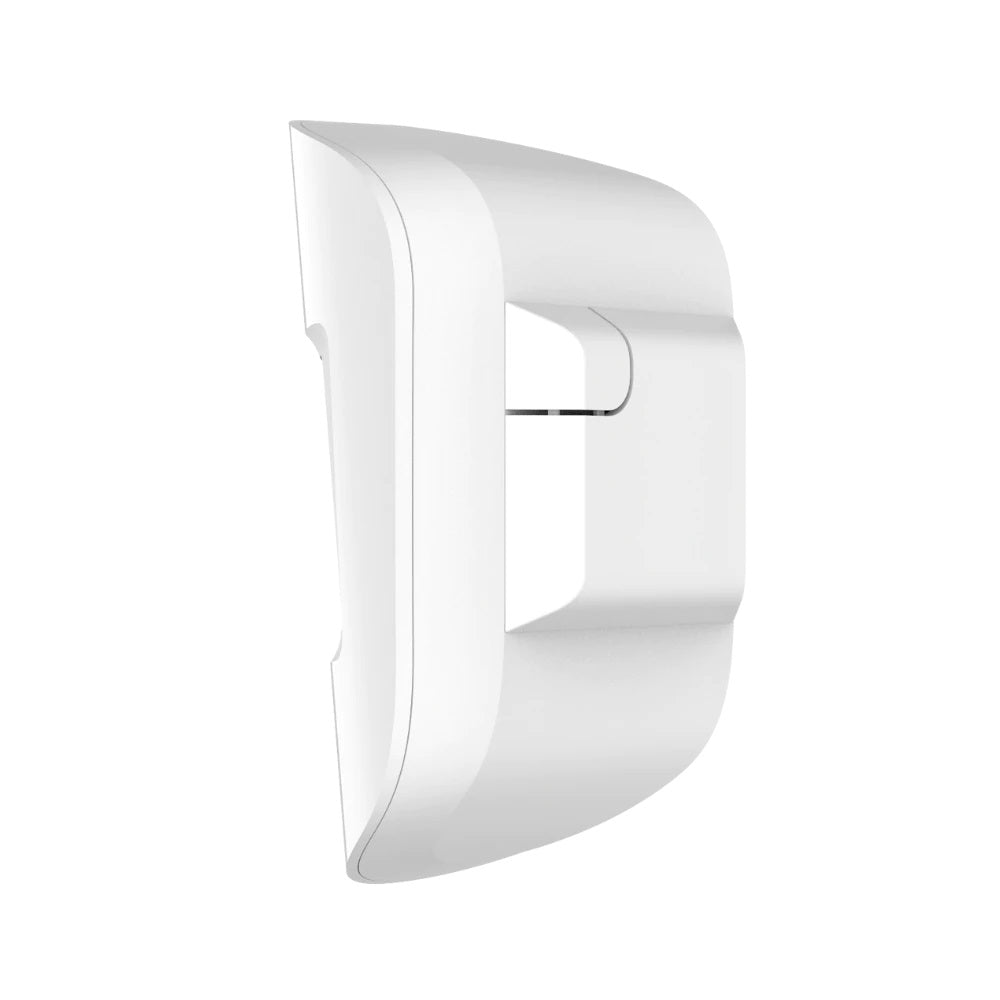

Complete set | CombiProtect combined motion and glass break detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set User’s guide |
