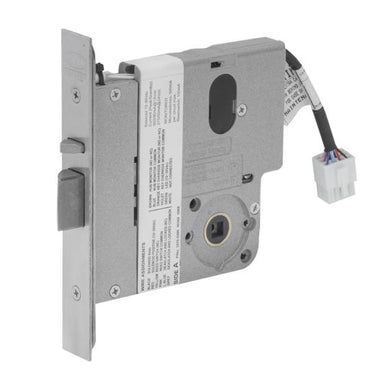

Designed and manufactured in Australia, the 3570 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy, with a stainless steel latch bolt and face plate and is suited for all commercial applications.

The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

Key Features

Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application. Available in non monitored and monitored versions.

Monitoring features:

Dead latched and Locked
Door position/Reed switch
Dual key override monitoring
Request to exit/REX
LED indication

Field Changeable settings:

Fail safe/fail secure configuration.
Multi-voltage - will work on 12-24 Vdc systems.
Handing - left hand and right hand doors
Selection of free lever or locked lever on both sides of the door
Key override monitoring either side of the door
Monitoring contacts - normally closed, normally open (for key override and request
to exit only)

Standards and Compliance

SL8 (Security) Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system)
D8 (Durability) Australian Lock Standard (AS4145.2.2008)
RCM Certified
3579 and 3579HS Series: SEC2011 Secure Area

Filters

Mortice Locks

Lockwood Electric Mortice Lock Fully Field Configurable 23mm Short Backset Monitored

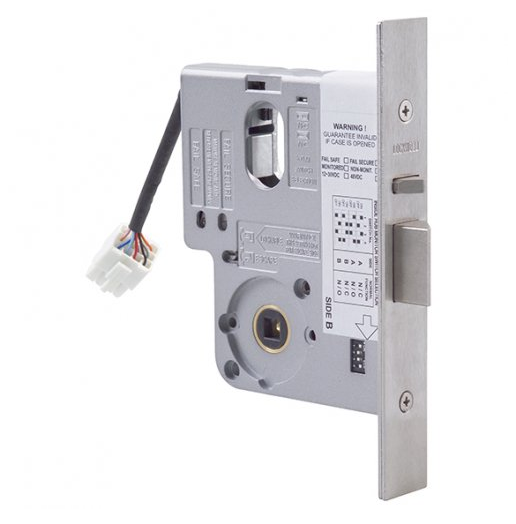

**SALE** Lockwood Electric Mortice Lock Monitored, Right Or Left Handed, 60mm Backset
