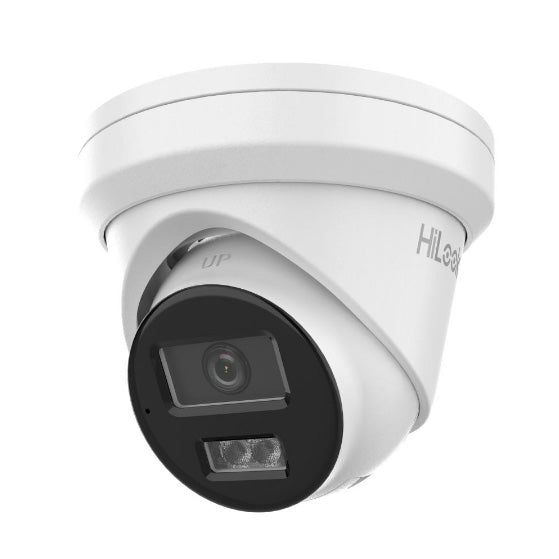

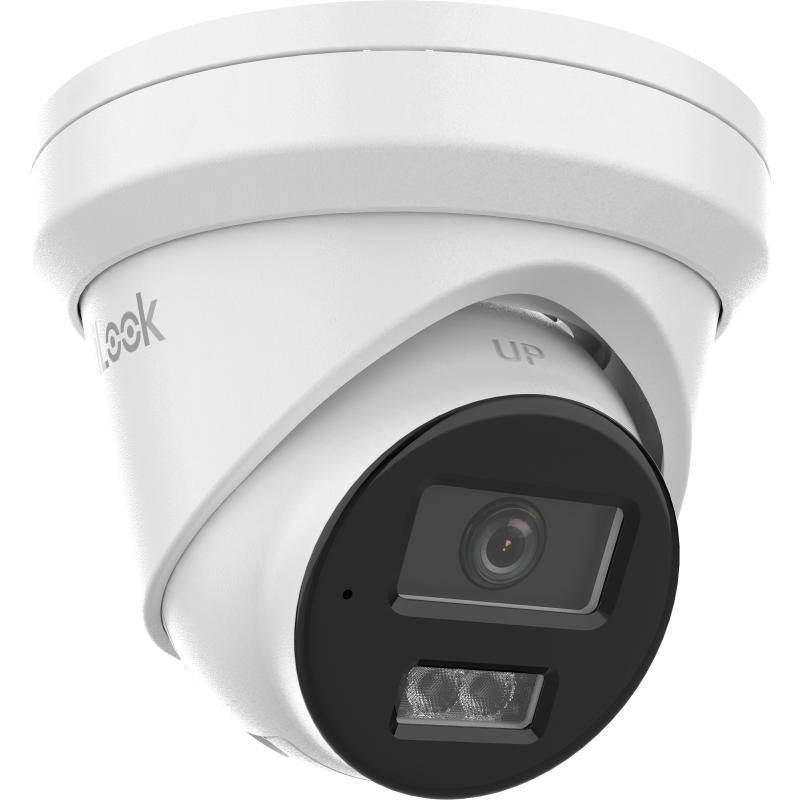

HiLook 8MP IP Value AI Series IR Turret Camera, Intellisense, Perimeter, 2.8mm, 120 dB WDR, 30m IR, POE / 12VDC, IP67, MicroSD, Built in Mic (Wall Mount: DS-1273ZJ-130-TRL, Junction Box: HIA-J102)

HiLook 8MP IP Value AI Series IR Turret Camera, Intellisense, Perimeter, 2.8mm, 120 dB WDR, 30m IR, POE / 12VDC, IP67, MicroSD, Built in Mic (Wall Mount: DS-1273ZJ-130-TRL, Junction Box: HIA-J102)

by Zankap Pty Ltd
Please login to view price
SKU IPC-T282H-MU
Please login to Add to Cart

Notify me when back in stock

HiLook 8MP IP Value AI Series IR Turret Camera, Intellisense, Perimeter, 2.8mm, 120 dB WDR, 30m IR, POE / 12VDC, IP67, MicroSD, Built in Mic (Wall Mount: DS-1273ZJ-130-TRL, Junction Box: HIA-J102)
  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

    4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI

    2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

    4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz:

    12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Datasheet
