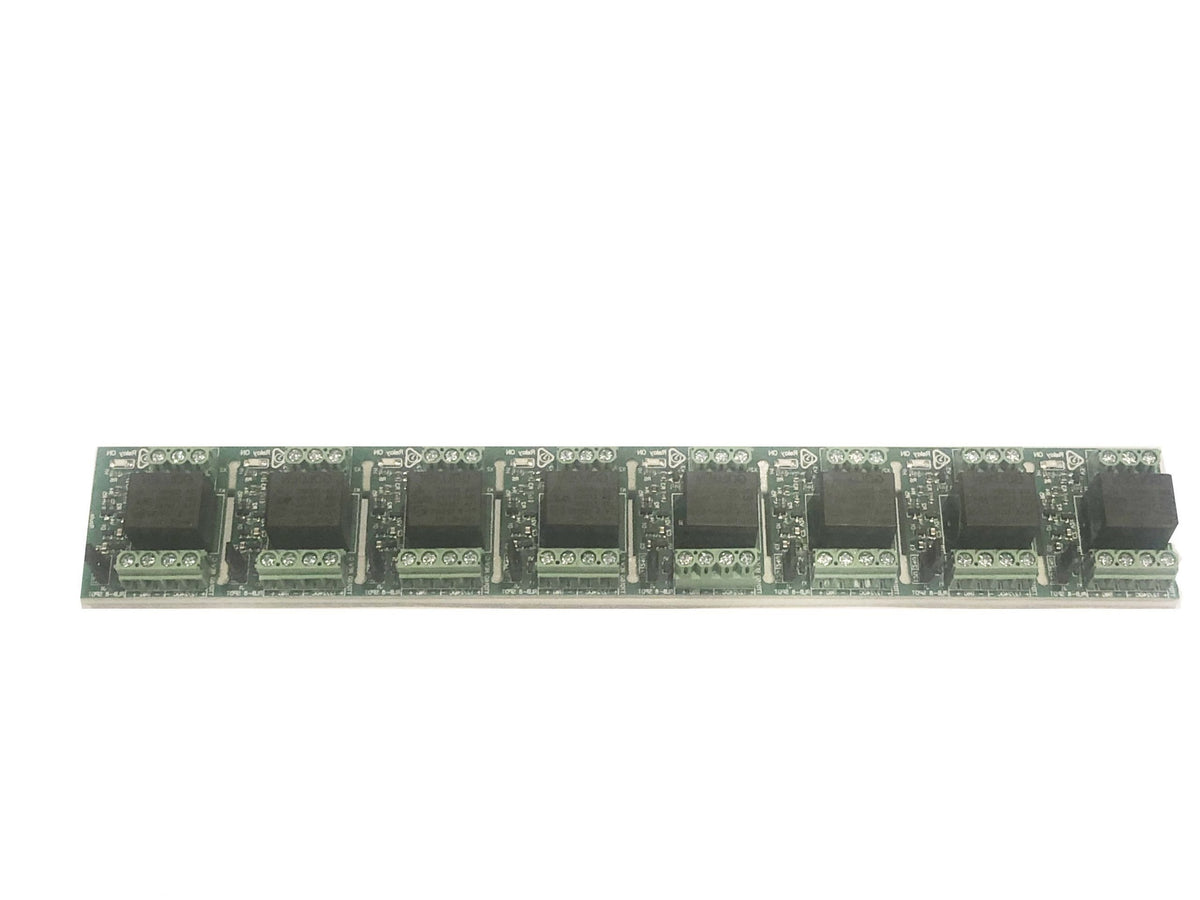

Tactical* 12V/24DC Jumper Selectable SPDT Dual Input, Buffered Relay Board. [30VDC 6A Contacts] - Strip Of 8 DIN Rail Mount

by Zankap Pty Ltd

SKU RLB8-SPDT-DVS-DIN

The RLB8-SPDT-V2 relay board from Tactical Power Products features a strip of eight (8) individual dual buffered, Single Pole / Double Throw (SPDT) Relays which share a common power rail

RLB8-SPDT	SPECIFICATIONS
Relays	8
Input Voltage	11-15Vdc (must be constantly powered)
Current	Current draw 47 mA per relay when relay is active
Positive Inputs	+ Trigger Input ( 5V to 12Vdc ) per relay
Negative Trigger	– Trigger Input ( 0V ) per relay
Contacts	NC-C-NO
Contact Current	6A 30Vdc
Dimensions	275L x 42W x 19H mm
Mounting	3M Double Sided Tape
Weight	300g approx
EMC Standards	AS/NZS CISPR 11:2004 (Class B)

Please Contact Zankap

Datasheet
