| Part Number | Gap Inch (mm) | Loop Open/Closed | Reed Form | Max. Contact Rating (W) | Max. Initial Contact Resistance (mΩ) | Max. Switching Voltage (V) | Max. Switching Current (A) |
|---|---|---|---|---|---|---|---|
| SD-80 | 1.1″(28) | CLOSED | Normally Open | 10 | 100 | AC110/DC100 | 0.5 |
| SD-81B | 1.1″(28) | OPEN | Normally Closed | 3 | 100 | AC30/DC30 | 0.2 |
| SD-80 WG | 1.26″(32) | CLOSED | Normally Open | 10 | 100 | AC110/DC100 | 0.5 |
| SD-82C | 1.1″(28) | SPDT | SPDT | 3 | 100 | AC30/DC30 | 0.2 |
| SD-84C | .75″(19) | DPDT | DPDT | 3 | 100 | AC30/DC30 | 0.2 |
Operating Temperature:-40°C to +60°C
-
-
Tane TAP-10Tane 3/8" (10mm) EOE Reed Switch White
Contact Size: .37″×1.26″(9.5mm×32mm) Standard Magnet Size: .37″×1.26″(9.5mm×32mm) Standard Gap: .6″(15mm) Colors: White, Brown 12″(305mm) 22 AWG Le...
View full details -

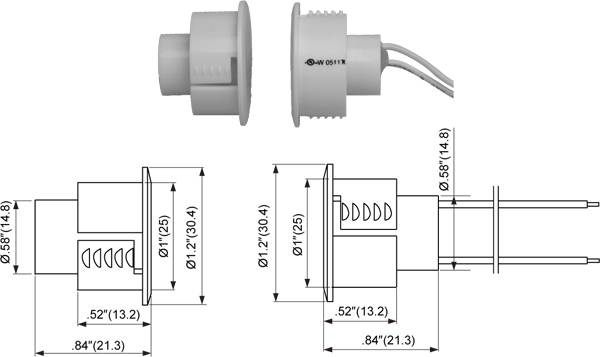

Zankap Pty Ltd 1078W-NSentrol 1" (25mm) EOE Reed Switch Wide Gap White
Sentrol 1" (25mm) EOE Reed Switch Wide Gap White
-
Sentrol 1078CW-NSentrol* 3/4" (19mm) EOE Reed Switch Wide Gap White
Recessed Steel Door Contact 1078CW w/Wire Leads, 3/4" Diameter, Closed Loop, Wide Gap, 3/4" Gap Size, White 1078/1076 Series Steel Door contacts...
View full details
