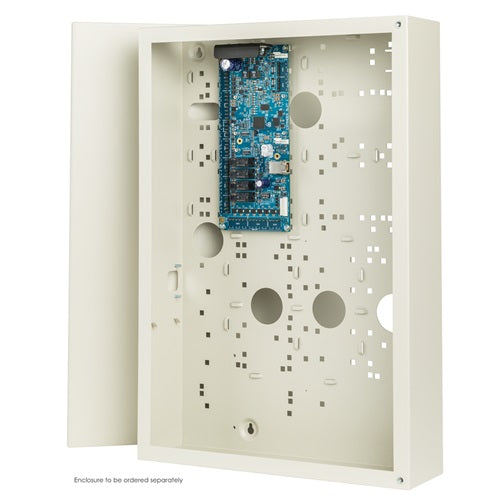

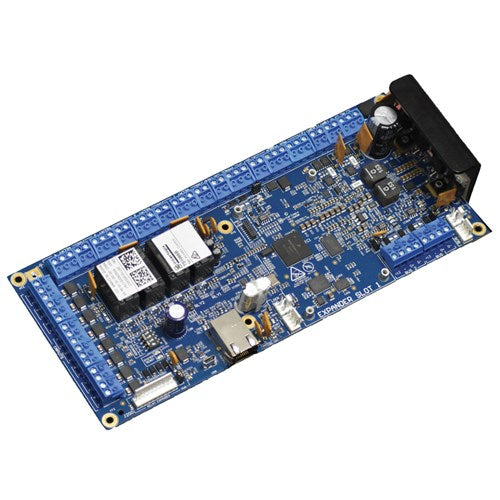

Tecom Challenger 8x Door Network Access Controller NAC With Enclosure (S7016A)

SKU TS1066

Notify me when back in stock

Tecom Challenger 8x Door Network Access Controller NAC With Enclosure (S7016A)
  • Direct connection to supported software
  • Compatible with ChallengerPlus panels
  • Large memory capacity:
    - 250,000 users
    - 10,000 door groups
    - 50,000 history events
  • Dual-BUS to support:
    - Tecom RS-485 readers or expanders - OSDP v2
    - Aperio
    - Salto

  • Remote flash firmware upgradeable
  • Onboard ethernet
  • 8 inputs onboard
  • 6 readers per door with any combination of in/out
  • Relay expander port
  • Support for multiple end-of-line (EOL) resistor values • Scheduled lock/unlock override times
  • User configurable door override times
  • Card data can be up to 128 bits on every credential
  • Each user can have a 10 digit PIN
  • Map up to 32 inputs and 16 outputs for use with ChallengerPlus panel
  • Up to 100 actions can be scheduled such as lock/unlock and enable/disable.
  • Internal error analysis (can find and repair faults avoiding unit malfunction)
Please Contact Zankap
