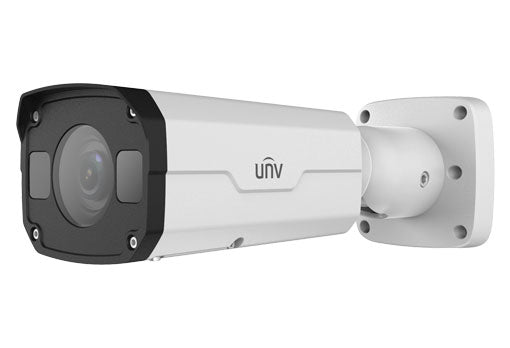

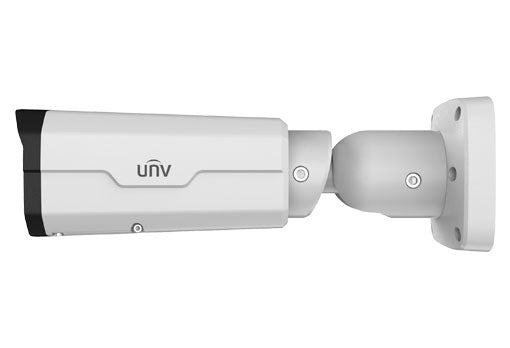

Uniview* 4MP IP Prime Series IR Bullet, Low Light, 2.8-12mm, 120dB WDR, 30m IR, Triple Streams, POE or 12VDC, IP67 (Junction Box: TR-JB07-D-IN)
IPC2324EBR-DPZ28
Camera
Sensor
1/3", 4.0 megapixel, progressive scan, CMOS
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
63
25.2
12.6
6.3
12
270
108
54
27
Angle of View (H)
91° ~ 27°
Angle of View (V)
54.4° ~ 13.7°
Angle of View (O)
118.3° ~ 33.2°
Adjustment angle
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.005Lux (F1.4, AGC ON) 0Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>52 dB
IR Range
Up to 30m (98ft) IR range
wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
