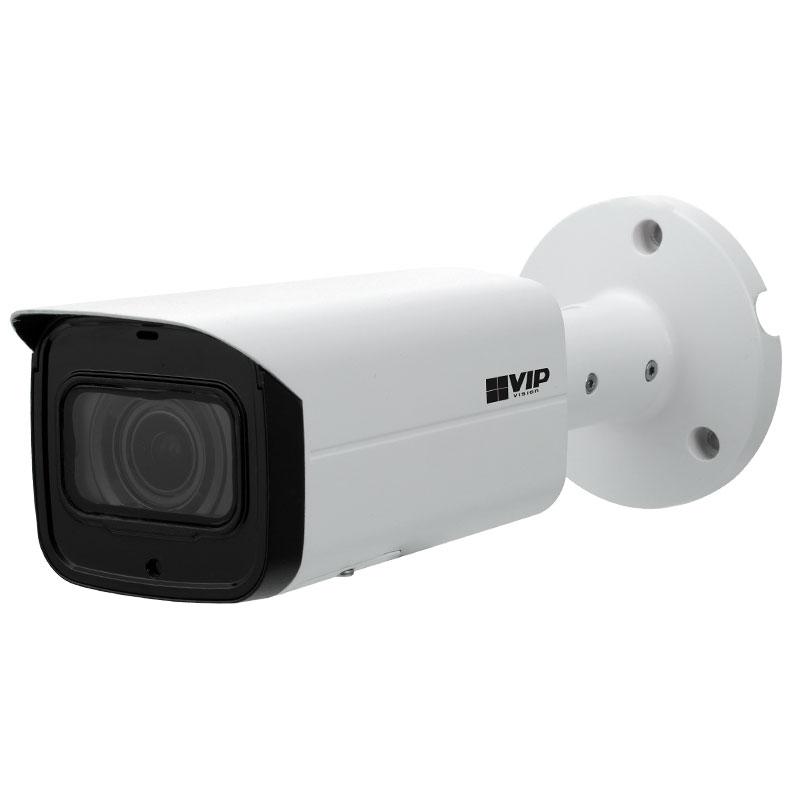

VIP Vision 4MP IP Professional Series Motorised IR Bullet, Low Light, 2.7-13.5mm Lens, 120dB WDR, 60m IR, POE or 12VDC, IP67, MicroSD (Junction Box: VSBKTA130E)
We've got a brand new CCTV storage calculator tool - you'll need to be logged in to see it though so either login or sign up for an account today! Have a look below to see what you're missing out on:
Camera
Image Sensor
1/3” 4.0 Megapixel CMOS
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
128MB/128MB
Min Illumination
0.005 Lux/F1.5 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)
S/N Ratio
>50dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 104°~27°, Vertical: 55°~15° (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
64m (wide) / 220m (tele)
Observe (63px/m)
25.6m (wide) / 88.8m (tele)
Recognise (125px/m)
12.8m (wide) / 44.4m (tele)
Identify (250px/m)
6.4m (wide) / 22.2m (tele)
Video
Resolution
4.0MP (2688 x 120) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto/ Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<9.8W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~355°
ePoE
No
Dimensions
Ø90 x 24mm
