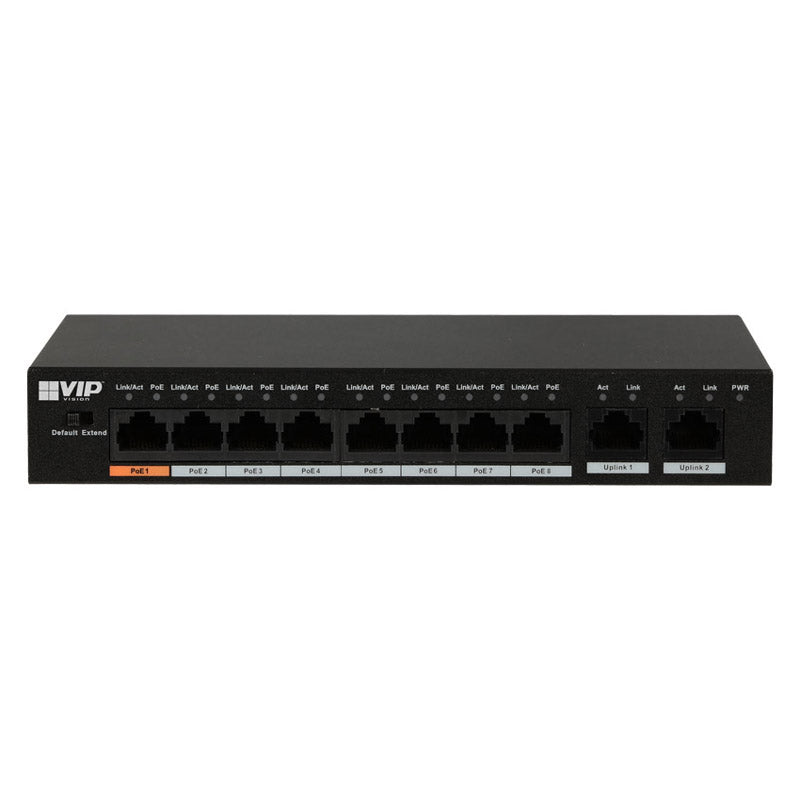

The VSPOE-SWA8G is a desktop mount, fast Hi-PoE switch in 8 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

• 7 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 2 x 1000Mbps Gigabit RJ45 (Base-T) uplink ports
• Total PoE power load up to 96W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

Switch Specification
Ports
8 ports
Speed
Fast 10/100
Device Ports
8 x 10/100 Base-T (PoE power supply ports)
Uplink Ports
2 x 10/100/1000 Base-T
Switching Capacity
5.6Gbps
Packet Forwarding Rate
4.17Mbps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
Switch Power Load
Port 1: ≤60W / Port 2-8: ≤30W / Total: ≤96W
Management
Switch Management
Unmanaged
MAC Address Capacity
2K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
Up to 250m range at 10Mbps (all ports via device switch)
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode 2kV / Differential Mode 0.5kV
Mounting Options
Desktop
Operating Environment
-10° ~ 55°C / RH90% (max)
Weight
0.49kg
Dimensions
190 x 100 x 42mm
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
240 mm
Height
75 mm
Depth
270 mm
Weight
1.80 kg
