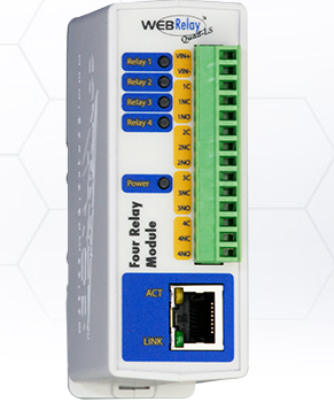

Control* By Web POE Remote Relay Control With Four independent, 28VAC / 24VDC, 3A Relays SPDT (Form C), Suitable For Dahua Intercom Systems

by Control By Web

SKU WEBRELAY-QUAD-POE

For many applications, WebRelay-Quad™ is the fastest, easiest, least expensive, and most reliable way to remotely control equipment over an IP network (including the Internet)!

WebRelay-Quad™ is used by many different companies for hundreds of applications including industrial control, security, remote control, remote reset, and many other applications that require remote relay control. It has four low-signal relays that can individually switch up to 3 Amp at 28V. Each relay can be turned on, off, or pulsed remotely using the built-in web pages or by running custom scripts from a computer or dedicated controller. It is extremely versatile and can be made to fit almost any remote relay control application.

The WebRelay-Quad is fully configured in minutes using a web browser. No additional software is needed.

Applications

WebRelay-Quad™ provides reliable remote relay control over any IP network. WebRelay-Quad, can provide remote relay control in a variety of applications including pump and motor control, and lighting control.

WebRelay-Quad's powerful and flexible design make imagination its only limit.

Control devices such as:
- Pumps
- Valves
- Motors
- Coils

Turn lights on/off while using IP video cameras.
Remotely control security gates
Control electronic door locks and garage door openers.

Features

Built-in web server for setup and remote relay control from a web-browser
No special software or device drivers required
XML status and control page makes communications with custom software interfaces simple
Can operate as a Modbus/TCP slave device
Four independent, 28VAC, 24VDC, 3A relays SPDT (Form C)
ON/OFF or Pulse relay modes
Rugged, compact enclosure can be DIN-Rail or Wall mounted
Includes a 2-piece (14-pin) industrial terminal connector that makes connections convenient
Power supply options:
- 9-28VDC
- POE Class 1 (0.44 to 3.84 Watt) or 5V±5%
