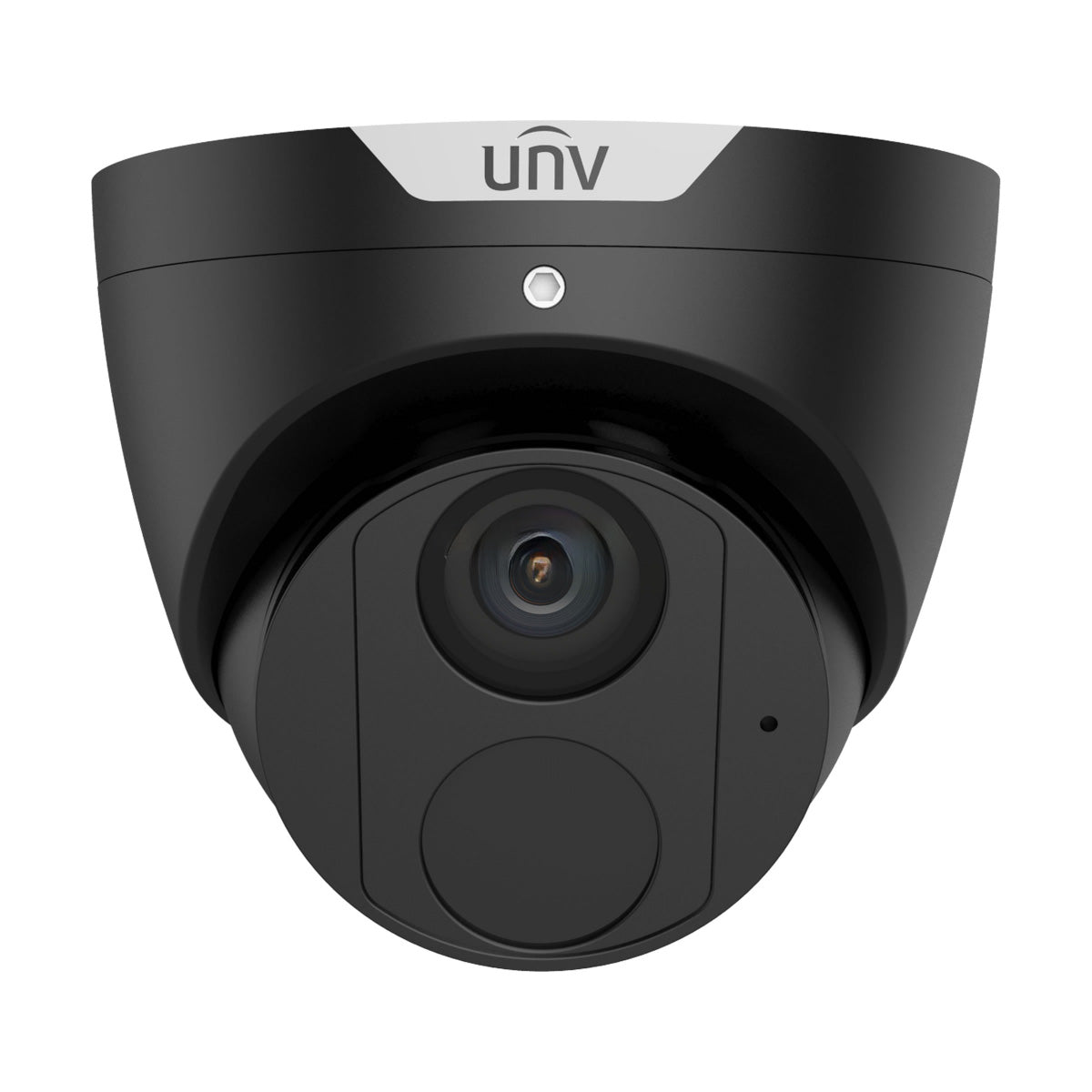

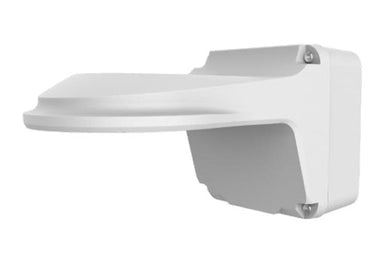

Uniview 8MP IP Prime Deep Learning AI Series IR Turret Camera, Perimeter, Low Light, 2.8mm, 120dB WDR, 30m IR, Triple Streams, Built-in Mic, POE or 12VDC, IP67 ***BLACK*** (Wall Mount: TR-WM03-D-IN, Junction Box: TR-JB03-G-IN)

Uniview 8MP IP Prime Deep Learning AI Series IR Turret Camera, Perimeter, Low Light, 2.8mm, 120dB WDR, 30m IR, Triple Streams, Built-in Mic, POE or 12VDC, IP67 ***BLACK*** (Wall Mount: TR-WM03-D-IN, Junction Box: TR-JB03-G-IN)

by Uniview
Please login to view price
SKU IPC3618SB-ADF28KMBLACK-I0
Please login to Add to Cart

Notify me when back in stock

8MP BLACK HD Intelligent LightHunter IR Fixed Eyeball Network Camera

  • High quality image with 8MP, 1/2.7"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card


IPC3618SB-ADF28KMC-I0		IPC3618SB-ADF40KMC-I0
Camera
Sensor1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
WDR120dB
S/N>56dB
Lens
Lens2.8mm@F1.64.0mm@F1.6
IrisFixed
Field of View (H)106.7°87.5°
Field of View (V)57.1°46.3°
Field of View (D)115.7°92.4°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.886.934.817.48.7
4.0124.149.724.812.4
Illuminator
Illumination Distance(IR)Up to 30m (98 ft)
Illumination Distance(Warm Light)Up to 30m (98 ft)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; 640*360,Max 30fps; D1 (720*576), Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingSupport
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio CompressionG.711
Audio Bitrate64 Kbps
Two-way audioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
RS485N/A
Built-in MicSupport
Built-in SpeakerSupport
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (L × W × H)Φ111 x 95mm (Φ4.4” x 3.7”)
Weight0.45kg (0.992lb)
MaterialMetal + Plastic
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A

Datasheet
