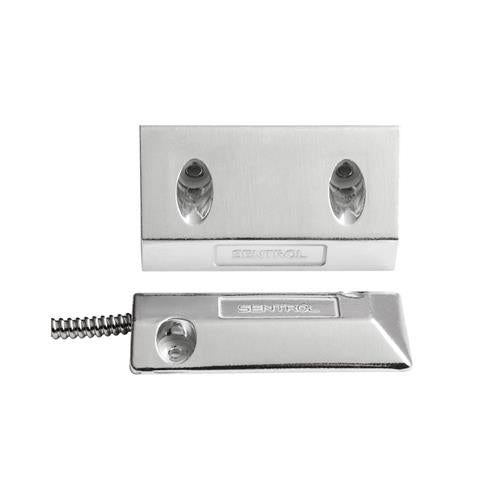

The Sentrol 2200 series overhead door magnetic contact is for use in the rigorous environments of commercial and industrial installations. The floor mount units are constructed with a low profile heavy cast aluminum housing. The reed switch assembly is fully encased in Sentrol's exclusive polyurethane potting material to prevent damage due to moisture or humidity.

Gap distance: (max) 76 mm

Connections: 45 cm stainless steel armored cable

Contact: NC

Supervised loop: No

Dimensions (L x W x H)

  • Contact 89 x 38 x 11 mm
  • Magnet 89 x 38 x 38 mm

Color: Aluminum

Magnet: 1958-L


Please Contact Zankap
