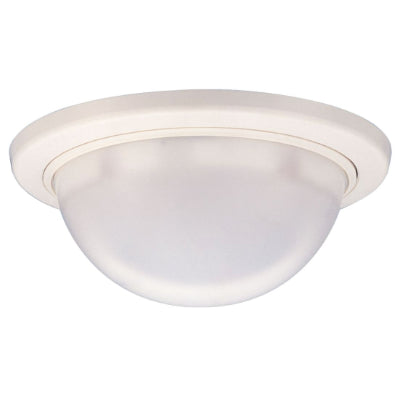

The PA-6800 series ceiling mount indoor PIR sensors combine a discreet compact appearance with outstanding performance at a low price. The sensor can be snapped in and out of the detachable base unit for easy installation in high places.

  • 2.0 to 4.9m Installation height
  • Detachable base unit with snap-in-out sensor design
  • Geared mirror array for precise area definition (PA-6812E/6820E)
  • Slim 47mm profile
ModelPA-6805EPA-6810EPA-6812EPA-6820E
Detection System
Passive infrared
CoverageWide Angle
12m Max.		360°
∅15.2m Max.		Spot
∅4m Max.		Vertical Curtain
20m Max.
Sensitive zone17 pairs33 pairs9 pairs8 pairs
Supply voltage
10.5 - 28V DC (non-polarity)
Current consumption25mA Max. (+2mA at L/C use)
Alarm signal
Dry contact (Semi-Conductor) (NC/NO selectable)
Reset: Approx 2 sec., 24V (AC/DC) 0.25A
(protective resistor 3.3Ω)
Alarm memory
3 minutes flashing, 47 minutes lighting and automatically reset
Alarm LED
Red:
Flashing at warming up
Lighting at alarm (LED disabled)
Memory LED
Yellow:
Flashing at memory activated
Lighting at memory indication
Adustmentvertically 30°-vertically 30°
Horizontally : 25° (on mounting hole of base)
Count changeover
1 / 2 / 3 / 4 selectable-
Ambient temperature range
-15°C to +55°C without condensation
Mounting position
Indoor ceiling (wall mount with optional attachment BCW-401)
Wiring connection
Terminals on separate base unit
Weight
110g
AppearanceBody : ABS resin / Cover : PE resin
