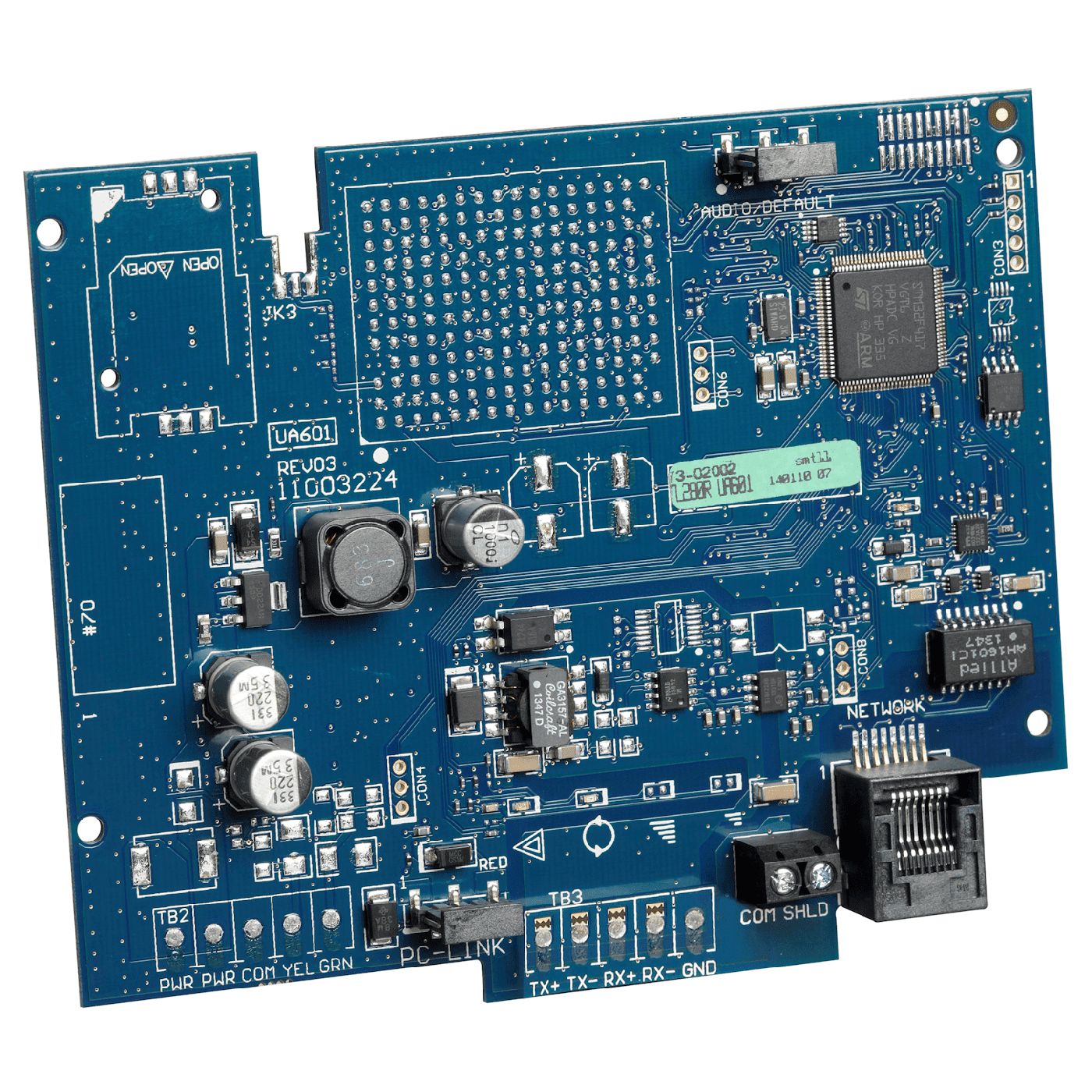

| Model | TL280(R | |
| Power Supply Ratings | ||
| Input Voltage | 10.8-12.5 VDC Power is supplied from the panel’s PC-Link header or a PCL-422 module in remote cabinet installations. In remote cabinet installations, the PCL-422 module located with the communicator is powered by either an HSM2204 or an HSM2300. Refer to the PCL-422 installation instructions for details. | |
| Current Consumption | ||
| Current | 100mA @ 13.66V | |
| Environmental Specifications | ||
| Operating Temperature | -10°C to 55°C (14°F to 131°F) | |
| Humidity | 5% ~ 93% relative humidity, non-condensing | |
| Mechanical Specifications | ||
| Mechanical Specifications | 100 × 150 × 15 | |
| Weight (grams) with bracket | 290 | |
8 on-board zones Expandable to 64 wireless and hardwired zones 4 PGM outputs: expandable to 80 (HSM2204, HSM2208) Template programming Connect up ...
