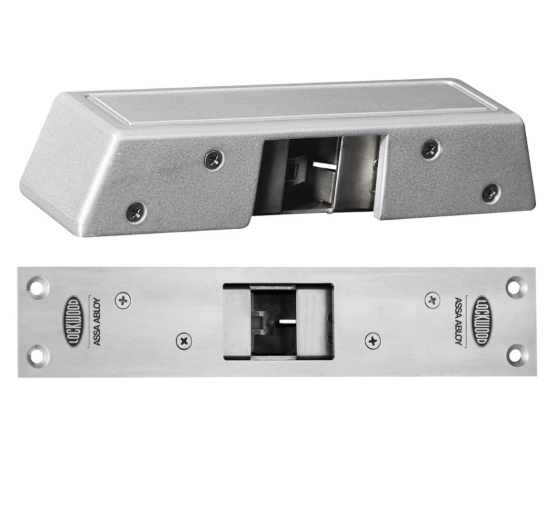

Padde Electric Hook Lock 12/24VDC Surface Mount Fail Secure (PTO) Monitored

Voltage
Supply Voltage 12-30Vdc Ground (OV)

Current
12Vdc - 250 mA after 1 sec. (initial current 830 mA)
24Vdc - 140 mA after 1 sec. (initial current 530 mA)

Monitoring
Door locked (Solenoid) - Door Closed (Latch)

Strength
(680kg) static strength rating
70 foot-lbs. dynamic strength rating

Endurance
Internal Testing achieved: 2,000,000 cycles of operation

Pre-Load
660lbs (300kg) pre-load capability

Environment
Operational temperature range: -20°C to + 60°C

Lock Body
Cast Aluminium Construction

Lock Bolt
Solid Stainless Steel

Specification Statement
This lock must be able to operate with up to 300kg of preload pressure, with a holding force of 680kg. The lock must be multi voltage selection 12 - 30 Volts with back EMF protection for reverse polarity. Lock can be mounted both horizontally or vertically. The lock needs to be subjected to vigorous testing and a minimum of 2,000,000 cycles needs to be achieved.

Dimensions
