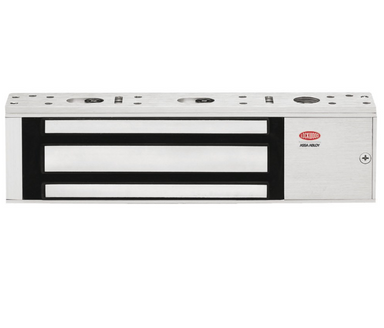

The Z8 weather Resistant Electromagnetic Lock operates with holding a force up to 580kg. Covering a range of applications this magnet is ideal for applications where it is exposed to the weather. With fixing options including wood, aluminium and steel constructions, the range caters to most external needs. The Electromagnet is available in monitored models using Hall-Effect monitoring. An additional advantage is the ability to select either 12V or 24V DC application on site.

Key Features

  • Fail-safe: unlocks when power is removed
  • Easy installation: suitable for both new and retrofit usage
  • Self-alignment: armature plate pivots to accommodate door drop
  • Silent operation: no humming or buzzing
  • Dual voltage: site selectable 12 or 24 Vdc
  • Monitored versions: Hall-Effect status monitoring available

Monitoring

Hall / Bond Monitoring

  • Hall Effect position sensors are non-contact devices that convert energy from a magnetic field into an electrical signal. This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)


Applications

  • Outdoor / Exposed doors
  • Doors located in coastal areas

Standards and Compliance

  • CE Approved
  • C-Tick Certified

Z8 Weather Resistant Electromagnet

Holding Force
550KG - 580KG
Voltage 12Vdc/ 24Vdc ±10%
Current 512mA @ 12Vdc 256mA @ 24Vdc
Monitoring Hall-Effect
Operating Temperature -10 to 55 Degrees
Operating Humidity 0-95%

Specification Statement
The Weather Resistant Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop.

_________________________________________________________

Dimensions

(L)230 x (H)67 x (D)43 mm
