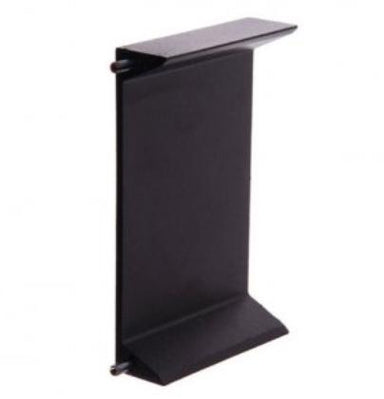

The ES2000 Series Fully Monitored High Security Electric Strike

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.

Key Features

  • Designed for use with all access control systems
  • Fully monitored - strike locked and door latched
  • Fail safe/fail secure changeable on site
  • High security
  • 4 Hour fire rating
  • 850kg holding force
  • 1 million cycles endurance rating
  • Cast stainless steel body
  • Stainless steel locking pins
  • SCEC Endorsed
  • Low Current consumption - Max 175ma @12Vdc
  • Solenoid rated for continuous use
  • Mounting kit supplied as standard
  • TRICARE® 5 Year Warranty


  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems


    175 mA @ 12Vdc

    Solenoids are rated for continuous use

    Solenoid Monitor - 1 amp NO/NC microswitch
    Door/Latch Monitor - 1 amp NO/NC microswitch

    Holding Force
    850kg Static Strength Rating

    Cycle tested to 1,000,000 operations

    Suitable for 15mm latch bolt with 3mm door gap

    Operational temperature range - 20°C to +60°C

    Solid Stainless Steel Construction

    Stainless Steel

    Specification Statement
    The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. Monitoring must include independent door / latch& solenoid monitoring. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use. Certifications must include CE, C-Tick and 4 hr fire rating.



    Standards and Compliance

    • S3 (Security) Australian Lock Standard (AS4145.2.1993)
    • D3 (Durability) Australian Lock Standard (AS4145.2.1993)
    • BS 5872 Approved
    • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
    • Approved to UL1034 (highest level)
    • CE Approved
    • C-Tick Certified
    • SCEC endorsed for secure areas
