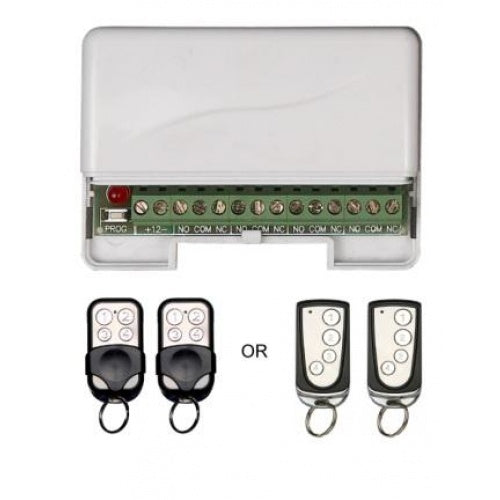

Activor Standalone Remote Kit With 4 x Relay Output - 25 Remote Capacity (1 x RX, 2 x 4 Button TX)

by Activor
SKU RSR-01

Notify me when back in stock

  • Can be universally used to operate security gates, garage door and Arm/Disarm/Panic
  • 4-relay outputs; SPDT
  • Relay 3 and 4 outputs can be easily programmed for latching or delay operation
  • Keeloq rolling code enhancing security
  • Standard capacity of 25; large capacity of 500 also available (P/N: RRR500)
  • Can easily delete a single remote
  • Mounting plate provided for quick and easy installation

Receiver:

  • Output:                      4-relay outputs
  • Relay rating:              SPDT; 1A 24VDC/120VAC
  • Operating voltage:     9-15VDC
  • Current:                     8-40mA
  • Capacity:                   25 as standard (500 available on request)
  • Dimensions:              90mm(L) x 60mm(W) x 28mm(H)

Remote:

  • 433.92 MHz Keeloq rolling code: 4.3 billion combination
  • RF range: 100m (open air)
  • Current: <1uA standby; 12mA operating
  • Transmitting power: <10mW
  • Power: 2 x 3 VDC lithium batteries CR2032
  • Battery Life: 4 years under normal operating conditions
