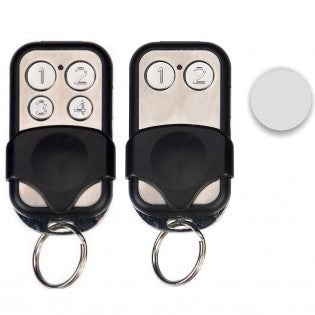

Activor* Wiegand 4 Button Remote With Slide Cover, Up To 100M Open Air Transmission Distance, Can Be Fitted With Optional Proximity Insert Tag

by Activor

Notify me when back in stock

  • Can work with any alarm panel to perform functions of Arm/Disarm/Panic or electric devices control
  • 4-relay outputs; SPDT
  • Relay 3 and 4 outputs can be easily programmed for latching or delay operation
  • Keeloq rolling code enhancing security
  • Standard capacity of 25; large capacity of 500 also available (P/N: RRR500)
  • Can easily delete a single remote
  • Mounting plate provided for quick and easy installation


  • Output:                       4-relay outputs
  • Relay rating:              SPDT; 1A 24VDC/120VAC
  • Operating voltage:     9-15VDC
  • Current:                     8-40mA
  • Capacity:                   25 as standard (500 available on request)
  • Sizes:                         90mm(L) x 60mm(W) x 28mm(H)


  • 433.92 MHz Keeloq rolling code: 4.3 billion combination
  • RF range: 100m (open air)
  • Current: <1uA standby; 12mA operating
  • Transmitting power: <10mW
  • Power: 2 x 3 VDC lithium batteries CR2032
  • Battery Life: 4 years under normal operating conditions
