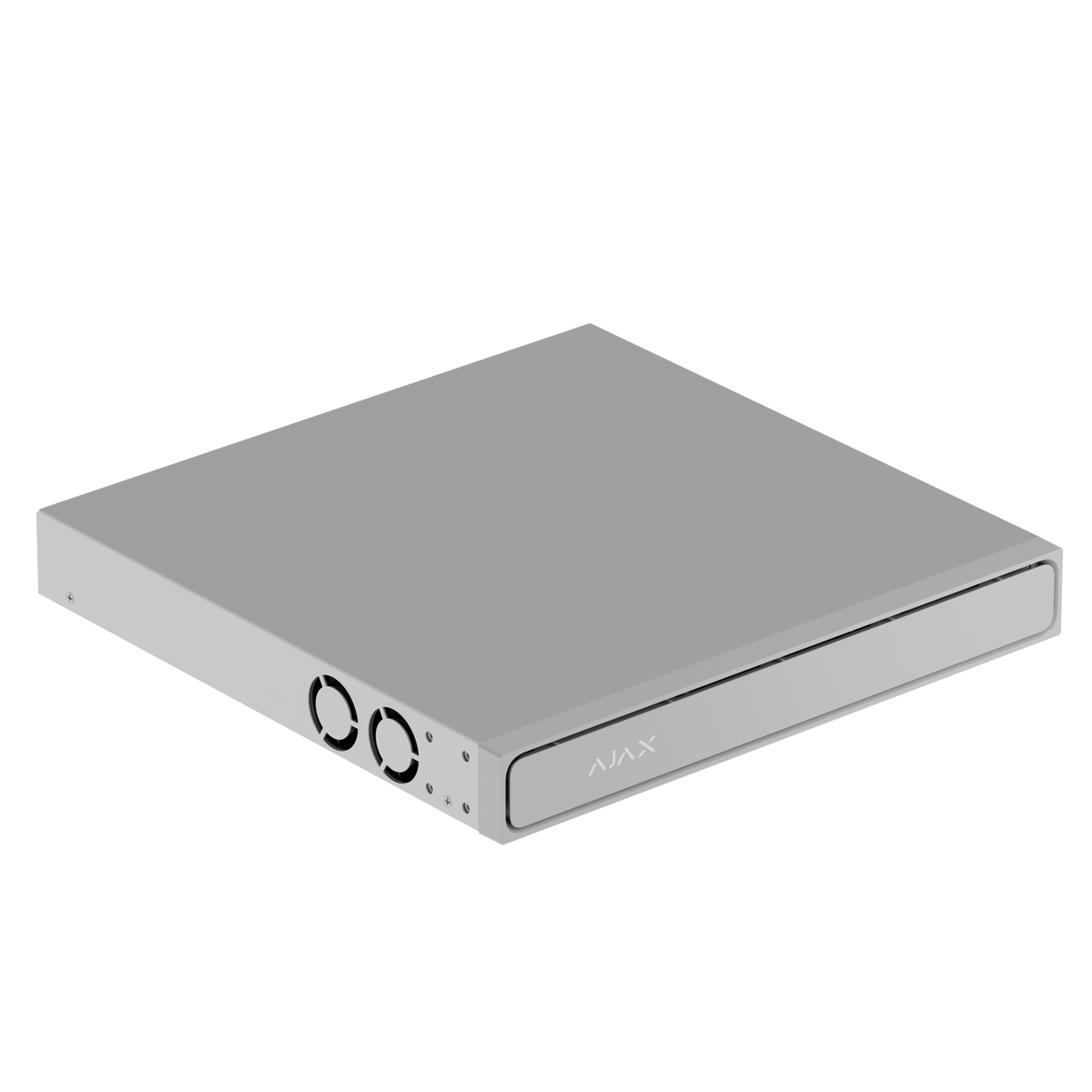

| Model | H2D8PAC (16-ch) |
| Product Code | 160716 |
| Product Type | Network Video Recorder with PoE |
| Colour | White |
| Video Channels | 16 IP channels |
| Recording Resolution | Up to 12 MP |
| Video Compression | H.265, H.264 |
| Video Streaming | Ajax JetSparrow, ONVIF and RTSP |
| HDMI Output | 1 × 4K HDMI |
| PoE Ports | 8 × PoE+ RJ45 |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | Up to 160 W |
| Maximum PoE Per Port | Up to 25 W |
| Network Interface | 1 × Gigabit Ethernet RJ45, 10/100/1000 Mbps |
| Incoming Bandwidth | Up to 160 Mbps |
| Outgoing Bandwidth | Up to 160 Mbps |
| HDD Bays | 2 × SATA, hot-swappable |
| Maximum HDD Capacity | Up to 16 TB per drive |
| HDD Included | No |
| Storage Modes | Redundancy and Split modes |
| USB | 3 × USB 2.0 Type-A |
| Camera Compatibility | Ajax cameras and third-party IP cameras via ONVIF Profile S and RTSP |
| Power Supply | 100–240 V AC, 50/60 Hz, 5 A |
| Maximum Power Consumption | Up to 320 W |
| Dimensions | 330 × 330 × 44 mm |
| Weight | 3.3 kg without HDDs |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | Up to 75% |
| Protection Rating | IP20 |
| Mounting | Desktop or 19-inch rack using included rack-mount brackets |
