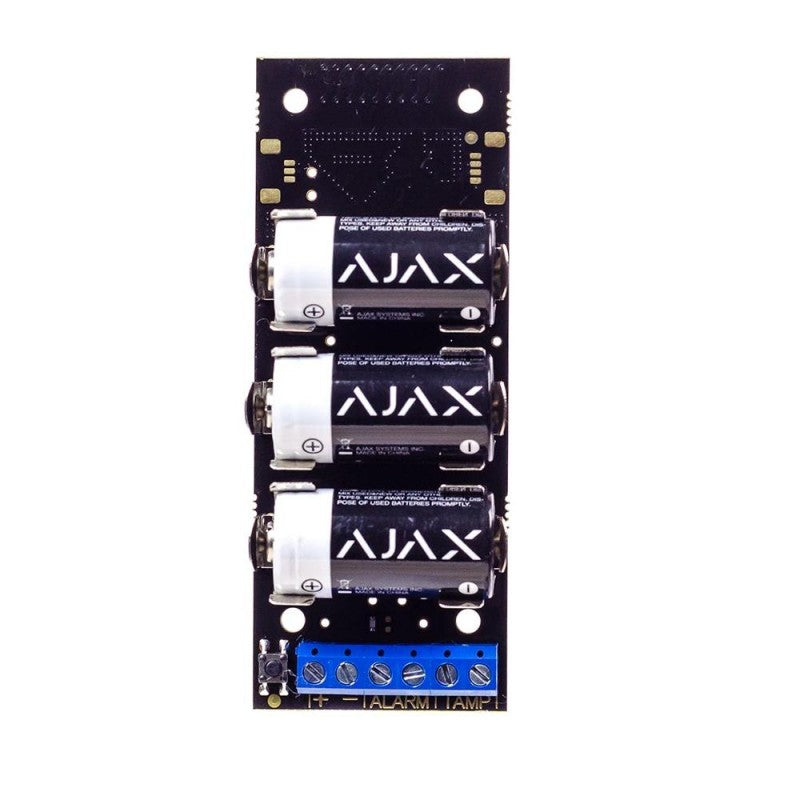

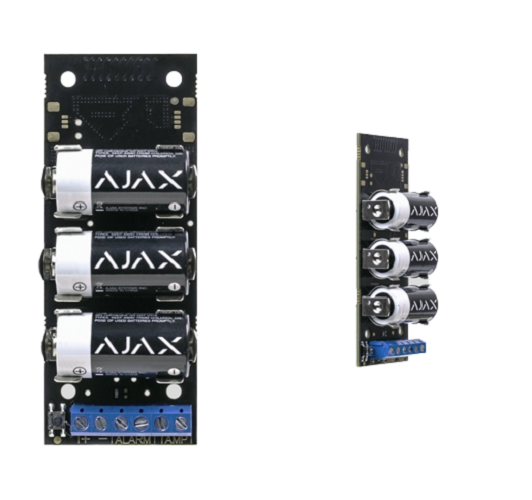

Ajax Integration Module For Third-Party Wired Detectors Or Devices, Provides 3.3VDC Power For Wired Device

by Ajax
SKU TRANSMITTER

Notify me when back in stock

  • Transmitter is designed to connect third-party wired sensors and devices to the Ajax security system. The integration module receives information about alarms and tamper activation through the wires connected to the clamps.

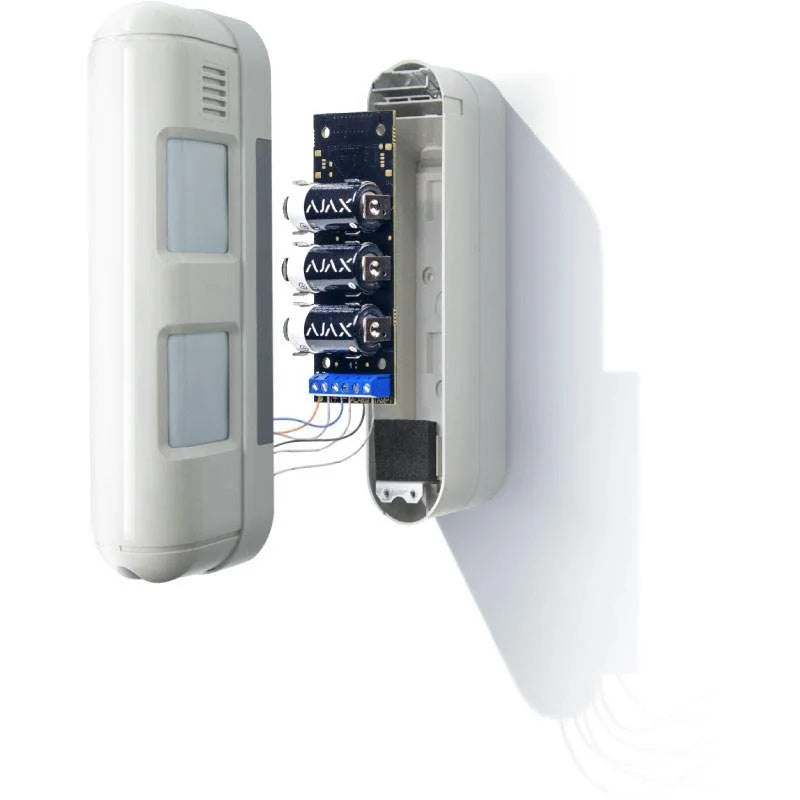

  • Transmitter can be used to connect panic and medical buttons, indoor and outdoor motion detectors, as well as opening, vibration, breaking, fire, gas, leakage and others wired detectors.
  • The type of alarm is indicated in the settings of Transmitter. The text of notifications about alarms and events of the connected device, as well as event codes transmitted to the central monitoring panel of the security company (CMS) depend on the selected type.


Classification

Module for third-party detector integration

Device type

Wireless

Installation method

Indoors/outdoors

Compatibility

Operates with all Ajax hubs and range extenders

Alarm input

1

Tamper input

1

Power supply current

Terminals +/−

Power supply output

3.3V

Battery charge indication

Available

Adjustable alarm types

Intrusion
Fire
Medical help
Panic button
 Gas

Alarm signal delivery time

0.15 s

Power supply

Battery: Three CR123A batteries,
 Power supply voltage: 3V

Battery life

Up to 5 years

Learn more

Jeweller radio technology

Communication range with central unit — up to 1,600 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 – 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 – 300 sLearn more about Jeweller

Temperature sensor

Available

Operating temperature range

-25°С to +50°С

Permissible humidity

Up to 75%

 Anti-sabotage

Protection against fraud
Jamming detection
 Accelerometer to detect removal

Remote setting and testing

+

Dimensions

100 x 39 x 22mm

Weight

74 g

Warranty

Replacement and repair within 24 months of the date of purchase. Batteries are not covered under the warranty

Service life

10 Years

Complete set

Transmitter
Three CR123A batteries (pre-installed)
Installation set
User’s guide
