| Sensitive element | 1 × PIR sensor |
| 1 × K-band microwave sensor | |
| When the device detects motion, it conducts an additional RF scan to eliminate false alarms due to thermal interference: air flows, heated curtains and blinds, fans, fireplaces, air conditioners, and other likely sources of false alarms. | |
| Motion detection distance | Up to 12 m |
| Motion detector viewing angles (H/V) | 88,5° / 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Pet immunity | Yes, height up to 50 cm, weight up to 20 kg |
| Why motion detectors react to animals and how to avoid it | |
| Tamper protection | Yes |
| Radio communication protocol | Jeweller |
| Learn more | |
| Radio frequency band | 866.0 – 866.5 MHz |
| 868.0 – 868.6 MHz | |
| 868.7 – 869.2 MHz | |
| 905.0 – 926.5 MHz | |
| 915.85 – 926.5 MHz | |
| 921.0 – 922.0 MHz | |
| Depends on the region of sale. | |
| Compatibility | Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge |
| Maximum RF output power | Up to 20 mW |
| Modulation of the radio signal | GFSK |
| Radio signal range | Up to 1200 m (without obstacles) |
| Learn more | |
| Power supply | 1 battery CR123A, 3 V |
| Battery life | Up to 5 years |
| Installation method | Indoors |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Overall dimensions | 110 × 65 × 50 mm |
| Weight | 96 g |
| Service life | 10 years |
Ajax Hub 2 Plus Control Panel WHITE - Dual SIM 4G / Ethernet / WiFi, 200 Devices, 25 Security Groups, 200 Users, 50 Rooms, Photo Verification, 100 ...
View full details
Ajax ReX Range Extender WHITE - Up To 1.8km Range, Connects To The Hub 2 / Hub 2 Plus, 240VAC Powered **No Photo Verification**
Ajax Hub 2 Control Panel WHITE - Dual SIM 4G / Ethernet, 100 Devices, 9 Security Groups, 50 Users, 50 Rooms, 25 IP Camera / NVR Support

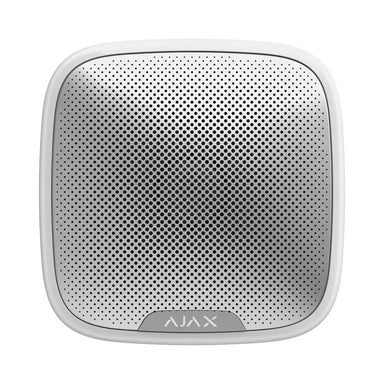

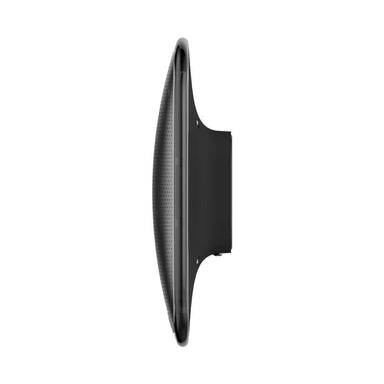

Ajax StreetSiren SILVER / WHITE - 2 Way Wireless Outdoor Siren With LED Indicator
