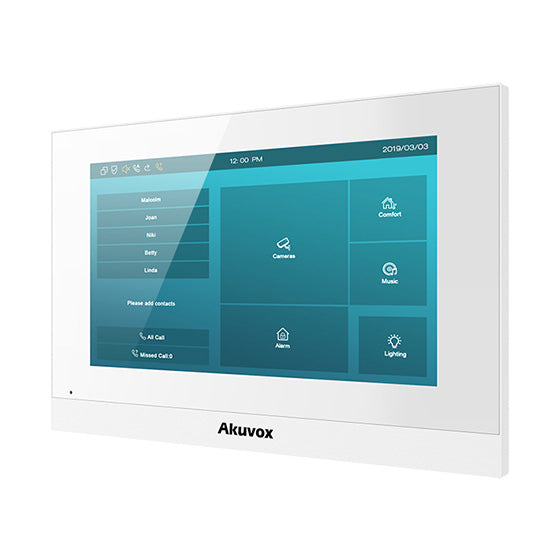

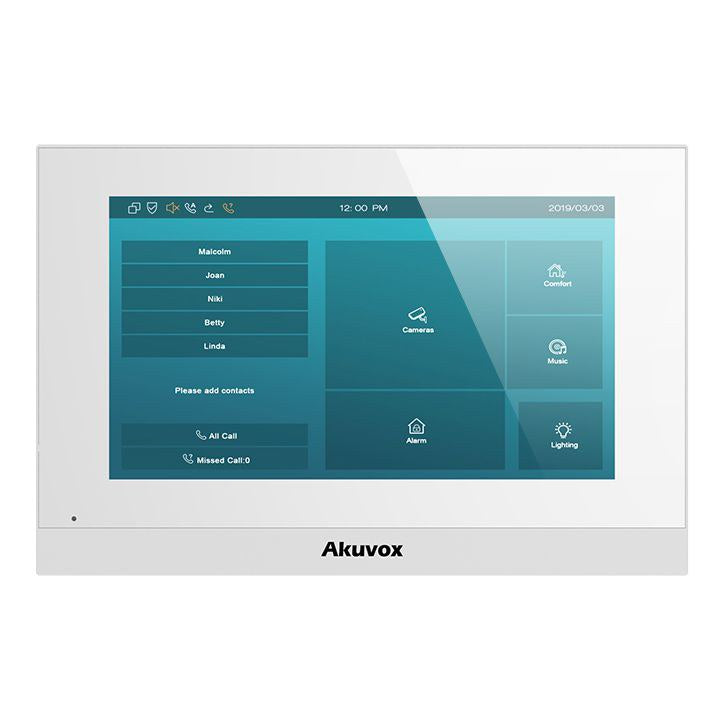

Akuvox IP / 2W 7" WiFi Video Handsfree Standard Internal Unit, With 1 x Inbuilt Dry Contact Relay Output, 48VDC (Desk Mount: C313-DMT-W) Linux Version

by Akuvox

Please login to view price

SKU C313W-2

Please login to Add to Cart

Akuvox C313 2Wire Or IP 7" WiFi Indoor Monitor

Front panel: Plastic
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
2-wire ports: 2 pair
48V DC connector (if not using NS-2)
Display: 7 Inch TFT LCD
Screen: 7 Inch capacitive touch screen
RS485 port: Supported
Relay out: 1
Bell in: 1
I/O: 8
Ethernet ports: 1xRJ45, 10/100Mbps adaptive
Installation: Wall-mounted & Desktop
Dimension: 200.2x132.2x27.2mm
Working Humidity: 10~90%
Working Temperature: -10°C ~ +45°C
Storage Temperature: -20°C ~ +70°C
