Akuvox NK-2 2-Wire IP Adaptor Kit, CCTV Camera & Intercom Retrofit, 300m, 2-Wire Transmission, PoE/48VDC

Akuvox NK-2 2-Wire IP Adaptor Kit, CCTV Camera & Intercom Retrofit, Long-Distance 2-Wire Transmission, PoE/48VDC Powered

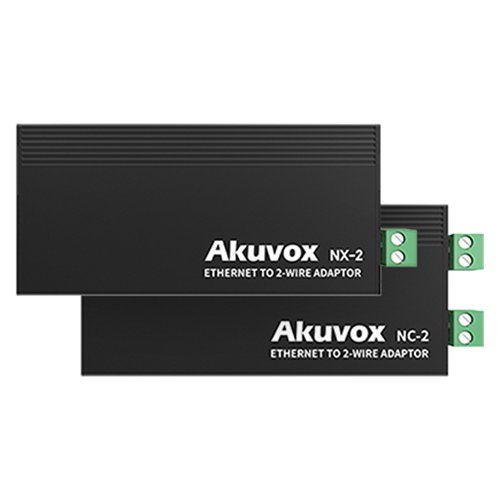

The Akuvox NK-2 is a versatile 2-wire IP adaptor kit designed for retrofitting existing analogue intercom systems and CCTV camera installations without rewiring. It comprises:

1. NX-2: PoE-side adaptor — TCP/IP, 1 x RJ45 10/100Mbps, 1 pair 2-wire ports. Connects to the network/PoE injector or 48VDC power supply.
2. NC-2: Camera-side adaptor — TCP/IP, 1 x RJ45 10/100Mbps, 1 pair 2-wire ports. Connects directly to the CCTV camera or intercom device.
3.


Ideal for upgrading old buildings with existing 2-wire infrastructure. Supports long-distance transmission via standard 2-wire cable, eliminating the need for expensive Cat5e/Cat6 rewiring. Flexible power options: PoE or 48VDC. Maximum 2-wire cable run: 300 metres.

Operating temperature: -10°C to +50°C.

Dimensions: 113 x 48 x 25mm each.

Compatible Applications: IP intercoms, IP cameras, and legacy analogue systems.
