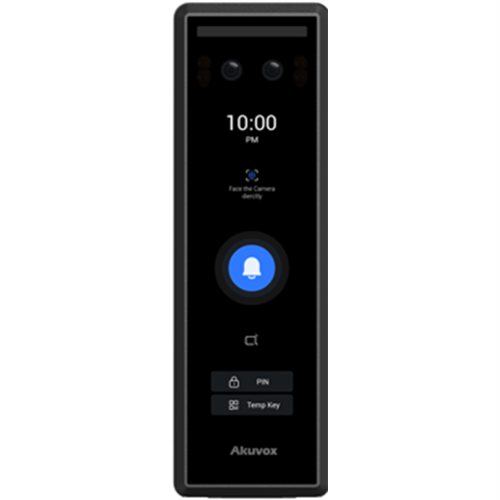

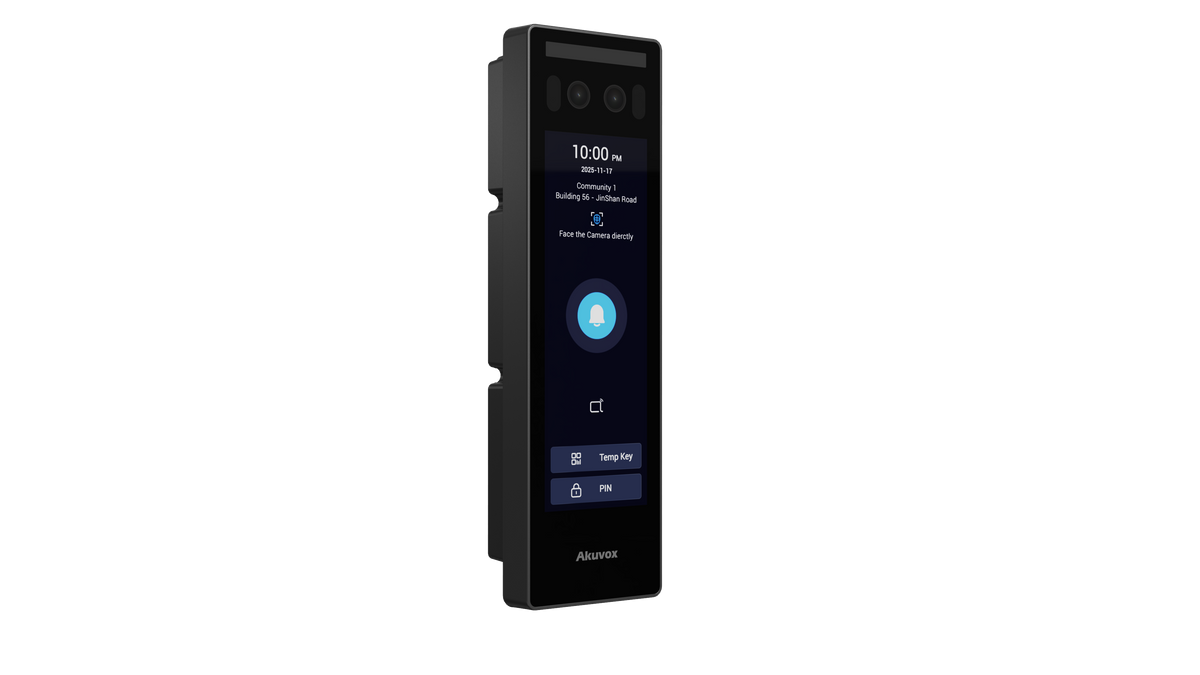

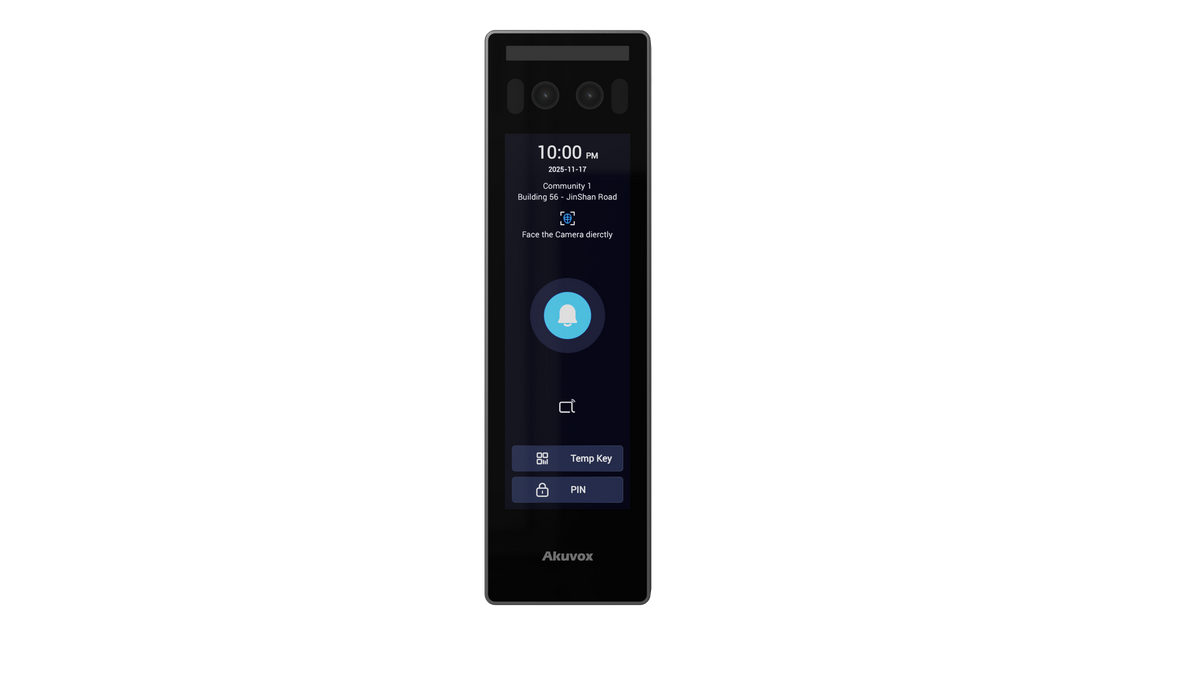

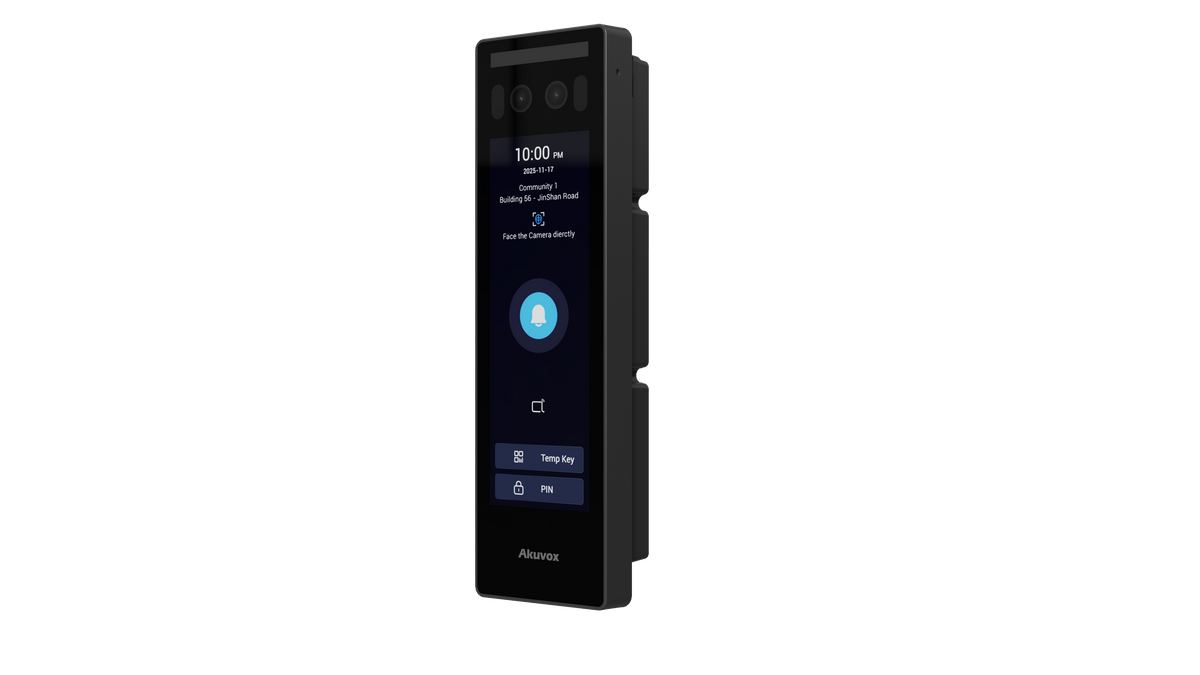

Akuvox A15S Ultra-Narrow Facial Recognition Video Intercom and Access Control Terminal

Product Description

The Akuvox A15S combines SIP video intercom calling and intelligent access control in one ultra-narrow device. At only 50 mm wide, it is ideal for mounting on narrow door frames and mullions where a conventional door station may not fit.

Visitors can use the touchscreen bell button to place an intercom call, while authorised users can unlock the door using facial recognition, MIFARE cards, PIN codes, QR codes, Bluetooth or mobile credentials. Facial recognition operates in less than 200 milliseconds with a stated accuracy of 99.7%.

The A15S features a 4.59-inch touchscreen, 2MP main and auxiliary cameras, built-in microphone and speaker, and SIP v1 and SIP v2 support. Two onboard relay outputs allow connected doors, gates or other locking devices to be controlled, including individual relay operation using DTMF commands during an intercom call.

Wiegand, RS485, four inputs and power pass-through provide flexible integration with electric locks, card readers and third-party access control systems. The A15S can be powered using PoE+ or 12V DC and supports both surface-mounted and optional flush-mounted installation.

With IP65 weather protection, IK07 impact resistance and tamper alarm support, the A15S is suitable for residential developments, offices, commercial buildings and multi-tenant applications.

Key Features

• SIP video intercom and access control in one device

• Ultra-narrow 50 mm-wide design

• 4.59-inch LCD touchscreen with 320 × 960 resolution

• 2MP main camera and 2MP auxiliary camera

• H.264 video at up to 1080p and 30 fps

• 81° horizontal and 47° vertical camera viewing angle

• Built-in microphone and speaker

• SIP v1 and SIP v2 support

• Facial recognition in less than 200 milliseconds

• Stated facial recognition accuracy of 99.7%

• Face, card, PIN, QR code, Bluetooth and mobile access

• 13.56 MHz card reader

• Supports MIFARE, DESFire EV2/EV3 and FeliCa cards

• NFC mobile access for compatible Android devices

• Bluetooth 5.0 with Akuvox SmartPlus compatibility

• Two onboard relay outputs

• Individual relay control using DTMF commands

• Four input ports

• Wiegand input or output

• RS485 connectivity

• Always-on camera for real-time entry monitoring

• Compatible with third-party video equipment, including NVRs

• Tamper alarm support

• Powered by 802.3at PoE+ or 12V DC, 2A

• Power output for a connected lock, reader or peripheral

• IP65 weather-resistant construction

• IK07 impact resistance

• Surface-mounted or optional flush-mounted installation

System Capacity

• Users: 5,000

• Face profiles: 5,000

• Cards: 25,000

• PIN codes: 5,000

• Access logs: 20,000

Technical Specifications

• Display: 4.59-inch LCD touchscreen

• Display resolution: 320 × 960

• Main camera: 2MP

• Auxiliary camera: 2MP

• Maximum video resolution: 1920 × 1080

• Maximum frame rate: 30 fps

• Video codec: H.264

• Camera viewing angle: 81° horizontal, 47° vertical

• Card frequency: 13.56 MHz

• Bluetooth: Bluetooth 5.0

• Relay outputs: 2

• Inputs: 4

• Network connection: RJ45 10/100 Mbps Ethernet

• PoE: IEEE 802.3at PoE+

• DC power input: 12V DC, 2A

• Protection rating: IP65

• Impact rating: IK07

• Operating temperature: -20°C to +55°C

• Operating humidity: 10% to 90% RH

• Dimensions: 170 × 50 × 27.9 mm

• Installation: Surface-mounted or flush-mounted
