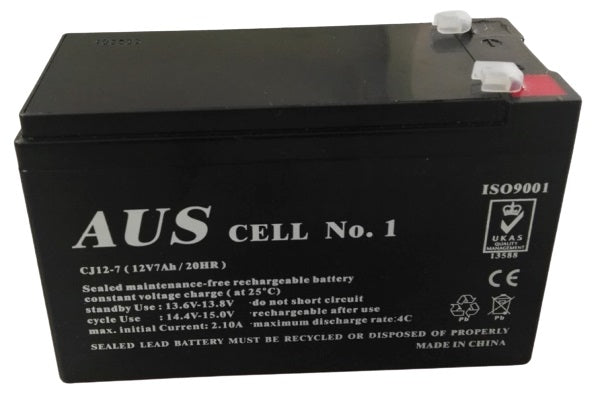

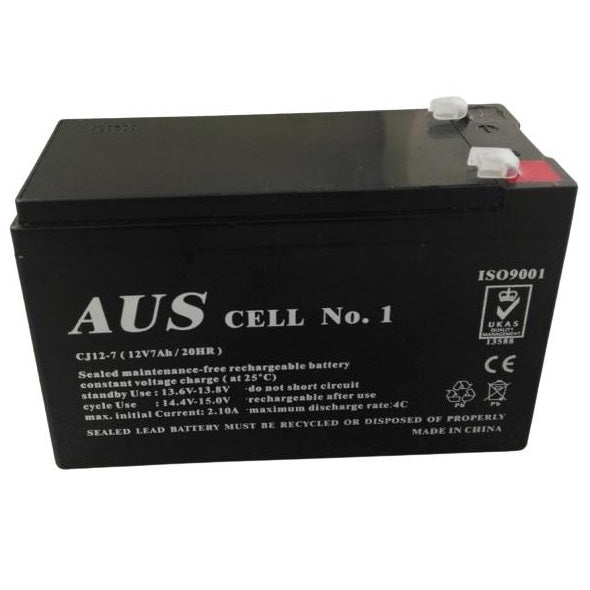

12V 7.0Ah CJ Series General Purpose Battery

  • With 5 years design life in float service
  • It meets with IEC and JIS standards
  • With up-dated AGM valve regulated technology and high purity raw materials, the CJ series battery has reliable standby service life
  • It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications
Cells Per Unit6
Voltage Per Unit12
Capacity7.0Ah@20hr-rate to 1.75V per cell @25 C
Max. Discharge Current70A (5 sec)
Internal ResistanceApprox. 35 mΩ
Operating Temperature RangeDischarge: -20ºC ~60 ºC ,Charge: 0 ºC ~50 ºC  Storage: -20 ºC~60 ºC
Normal Operating Temperature Range25 ºC ±5 ºC
Float charging Voltage13.7 to 13.9 VDC/unit Average at 25 ºC
Recommended Maximum Charging Current Limit2.1 A
Equalization and Cycle Service14.6 to 14.8 VDC/unit Average at 25 ºC
Self DischargeValve Regulated Lead Acid(VRLA) batteries can be stored for more than 6 months at 25 ºC. Self-discharge ratio less than 3% o per month at 25 ºC.
TerminalFaston Tab 187(F1)/Faston tab 250(F2)
