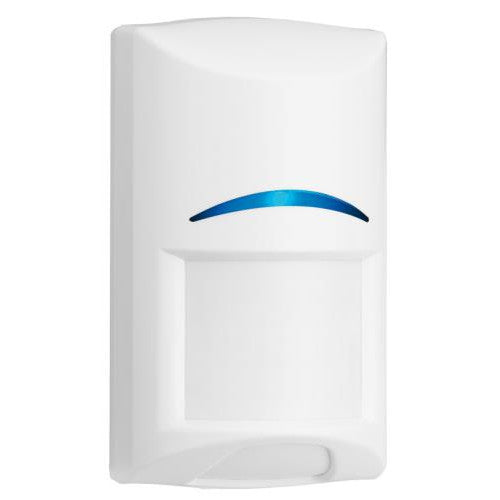

Gen2 Tritech PIR Motion detector, 40ft (12m) |  F.01U.134.133

  • Dynamic Temperature Compensation – superior catch performance in any environment
  • Microwave Noise Adaptive processing – reduce false alarms from repetitive sources
  • Wall to Wall Coverage – superior catch performance
  • Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance
  • Self-locking Enclosure with Integrated Bubble Level – reduce installation time
Current (alarm/standby)10 mA at 12 VDC
Voltage (operating)9 VDC to 15 VDC
Pet Immunity1One or two pets up to 45 kg (100 lb) or numerous rodents
Relative Humidity0 to 95%, non-condensing For UL Listed product installations 0 to 85%, non-condensing
Temperature (operating)G, GE models: -20° C to +55° C (-4° F to +130° F) HE models: +5° C to +40° C (+41° F to +104° F) For UL Listed product installations, 0°C to +49°C (+32° F to +120° F)
Dimensions105 mm x 61 mm x 44 mm (4.2 in. x 2.4 in. x 1.7 in.)
MaterialHigh-impact ABS plastic
Radio Frequency Interference (RFI) ImmunityNo alarm or setup on critical frequencies in the range from 150 kHz to 2GHz at field strengths less than 30V/m.
RelaySolid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ω closed
TamperNormally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W Connect tamper circuit to 24-hour protection circuit.
