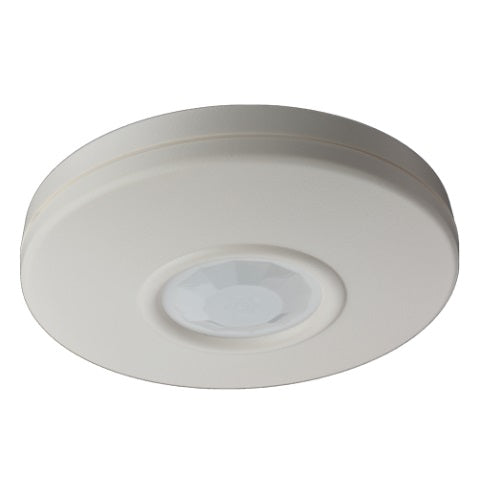

PIR Motion Detector 360° Ceiling 7.5m (24ft)  |  4.998.800.224

  • Enhanced signal processing
  • 360° x 7.5 m (24 ft) pattern
  • Surface/semi-flush mountable
  • Internal pointability, sealed detector chamber
MaterialHigh impact ABS plastic enclosure
Dimensions3.05 cm x 11.7 cm (1.2 in. x 4.6 in.)
Temperature (operating)-29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) ImmunityNo alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m.
Height range2 m to 3.6 m (7 ft to 12 ft)
LocationSurface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box
Pattern pointability±15° rotational
AlarmNormally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg.
TamperNormally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
Current20 mA at 12 VDC
Voltage10 VDC to 15 VDC
