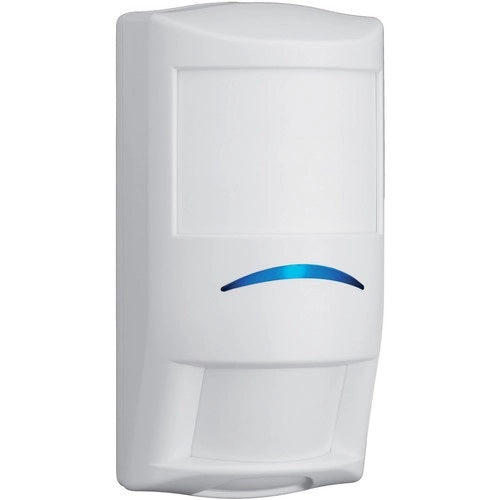

Professional Series Tritech+ PIR Motion Detector, 18m (60ft) | F.01U.025.758

  • Provides PIR and microwave
  • Recommended mounting height is 2 m to 3 m (7 ft to 10 ft)
  • 10.525 GHz frequency
  • 18 m x 25 m (60 ft x 80 ft) coverage, field selectable to 8 m x 10 m (25 ft x 33 ft)
  • Cloak and Camouflage Detection Technology (C2DT)
Voltage (Operating):9 VDC to 15 VDC
Current (Maximum):< 25 mA
Current (Standby):13 mA
Relay:Solid state relay, normally-closed (NC) contacts power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Tamper:Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit.
Trouble:Solid‑state relay normally-closed (NC) contacts.
Dimensions:136 mm x 69 mm x 58 mm (5.25 in. x 2.75 in. x 2.25 in.)
Material:High-impact ABS plastic
Alarm Indicator:Blue LED for TriTech alarms
Radio Frequency Interference (RFI) immunity:No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m.
Relative Humidity:0 to 95%, non-condensing
Temperature (Operating and Storage):-29°C to +55°C (-20°F to +130°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Protection Rating:IP41, IK04 (EN 60529, EN 50102)
