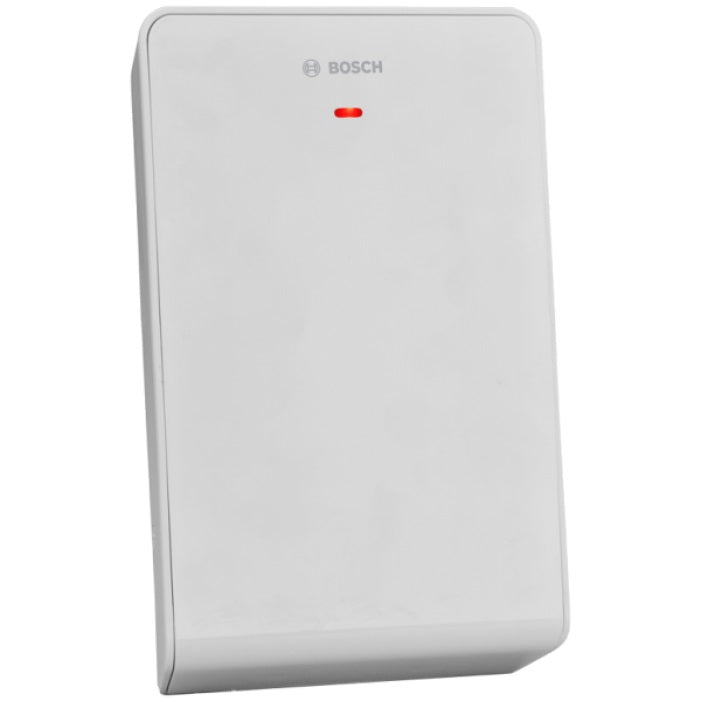

Wireless Receiver SDI2 Bus Interface F.01U.383.394

  • Dual internal antennas provide spatial and polar RF signal reception for high reliability
  • Cover and wall tamper protection
  • Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation
  • Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)
  • External status LEDs
  • Detection and reporting of radio frequency interference
Dimensions139.70 mm x 209.60 mm x 31.80 mm (5.50 in x 8.25 in x 1.25 in)
Wiring distance243 m (800 ft)
Wiring gauge0.65 mm (22 AWG) to 2.0 mm (18 AWG)
Tamper detectionTransmits a tamper switch signal when the unit is removed from its base, or the mounting surface.
Power/voltage10-14 VDC, 12 VDC nominal
Maximum current draw70 mA
Frequency433.42 MHz
Operating Environment0゚C to +49゚C (+32゚F to +120゚F )
Relative humidityUp to 93% non-condensing
UseIntended for indoor use.
