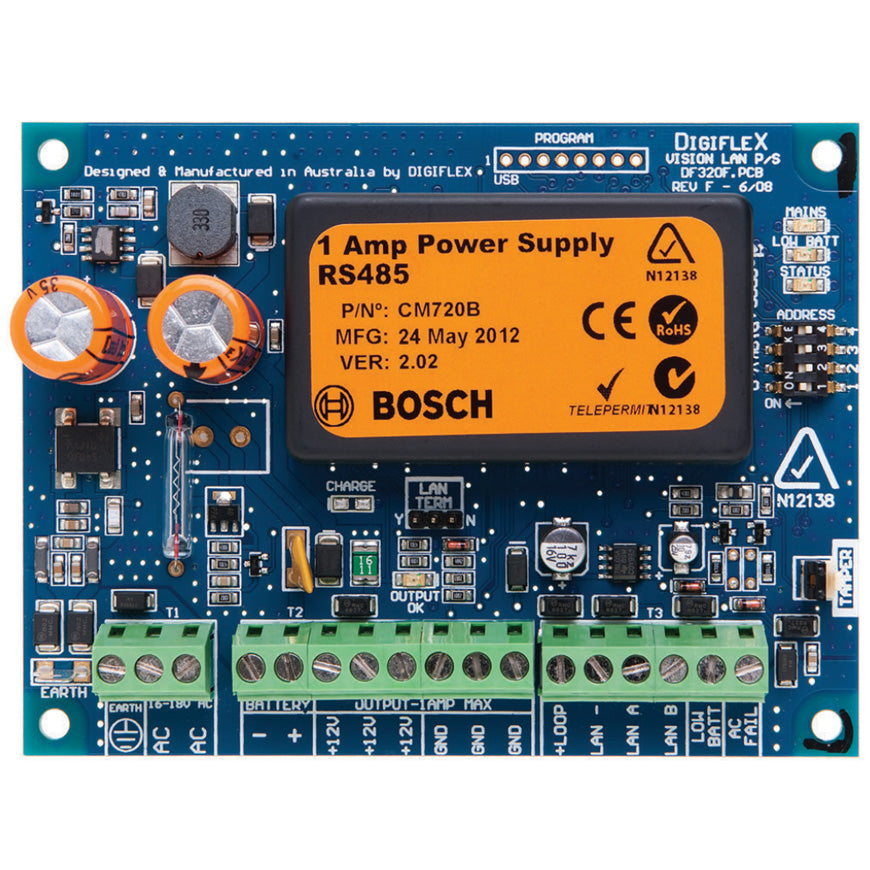

1 Amp LAN Power Supply With Battery Charger Module (RS485)  |  F.01U.271.517

  • 1 Amp continuous rated; LAN monitored
  • Multiple protected power outputs
  • Resettable fuse protected
  • Pulse battery charger
  • AC Fail output, low battery output and low battery indicator
  • Can be used as a stand-alone 1Amp 13.8VDC power supply and battery charger
  • Voltage Input (Primary Source:) 16-18V AC 50-60Hz – 24VA
  • External Power Adaptor or 220-240V AC to 18V AC 50-60Hz – 24VA Internal Transformer
  • Stand-By Battery (Secondary Source): 12V DC, 7.2AH sealed rechargeable battery Panasonic LC-P12R2P or equivalent
  • Resettable Fuse Protected @ 3 Amps
  • Voltage Output: 13.8V DC @ 1 Amp. Ripple 100mV @ Full Load (Primary supply source only)
  • Compatible With:

    • Solution 6000
Dimensions (H x W x D) (mm)30 x 115 x 86 mm
Input voltage (VAC)16 – 18 VAC
Operating temperature (°C)0 – 55 °C
Power frequency50 Hz; 60 Hz
