Bosch Solution 6000 External Smartcard Reader Black Slim | F.01U.294.865

  • 40 bit transmission format – 125Khz, with up to 40mm read range
  • Water & dust proof to IP67
  • Lock Output and Egress Input to simplify wiring
  • Separate indicators show door and alarm status, with built-in sounder providing alarm warning
  • Anti replay and anti-substitution protection

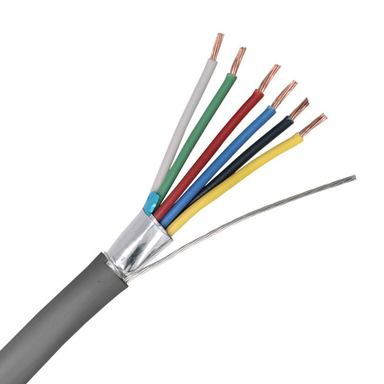

Module Connection / ConnectivityMax total LAN length using multi strand security cable = 500m / Max total LAN length using 2 pair twisted shielded data cable, RS484 LAN (Belden 8723) = 1200m / See full control panel manual for complete wiring instructions

Power10.0VDC - 14.5VDC @ 100mA Max

Operating temperature (°C)-30° to 55°C
Operating relative humidity, non-condensing (%)RH to 85% at 30°C non-condensing

Dimension (H x W x D) (mm)114 mm x 44 mm x 21 mm

Fixing MethodThe PR115B should be mounted on a sturdy vertical wall using fixtures appropriate for the wall construction type
