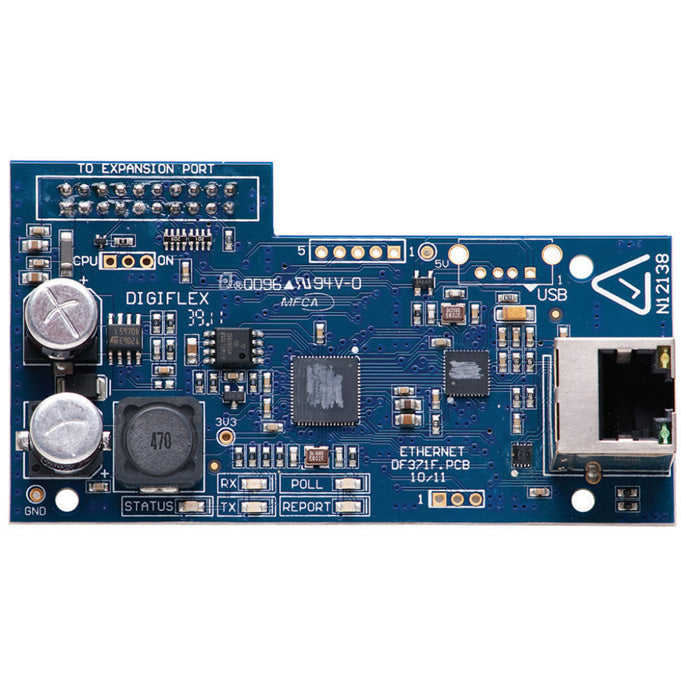

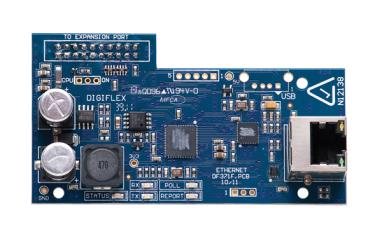

Solution Conettix IP Ethernet Module

  • High security (128bit encryption) replacement for PSTN line
  • Remote upload / download over IP and alarm reporting over LAN/WAN
  • Operate outputs and areas remotely
  • Dynamic and fixed IP address support
  • Conettix and CSV-IP reporting formats
  • Allows you to connect the Solution 6000 control panel to the customer's existing IP network
  • Enables supervised alarm signal transmission with virtually no additional communication costs
  • Compatible With:

    • Solution 6000
Operating Voltage:Supplied by panel – derate the maximum available 12V accessory power from the panel by 60mA when the module is fitted
Network Interface:RJ45 Ethernet 10base-t or 100base-TX (Auto Sensing)
Protocols Supported:RP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, SMTP, and httpSolutionLink Upload / Download Software, Conettix, CSV IP, MyAlarm CID etc
Encryption:128 bit AES Rijndael
Module Connection:The CM751B mounts to the control panel PWA via the expansion port header and 3 plastic PCB standoffs provided. The HW750 Riser Kit, also included, should be used when the CM751B and CM101B Voice Module are installed on the same panel.
Temperature:0o to 55oC Operating
Humidity:5% to 85% at 30oC non-condensing
Dimensions:93(W) x 52(D) x 30(H)mm
Warranty:3 years
