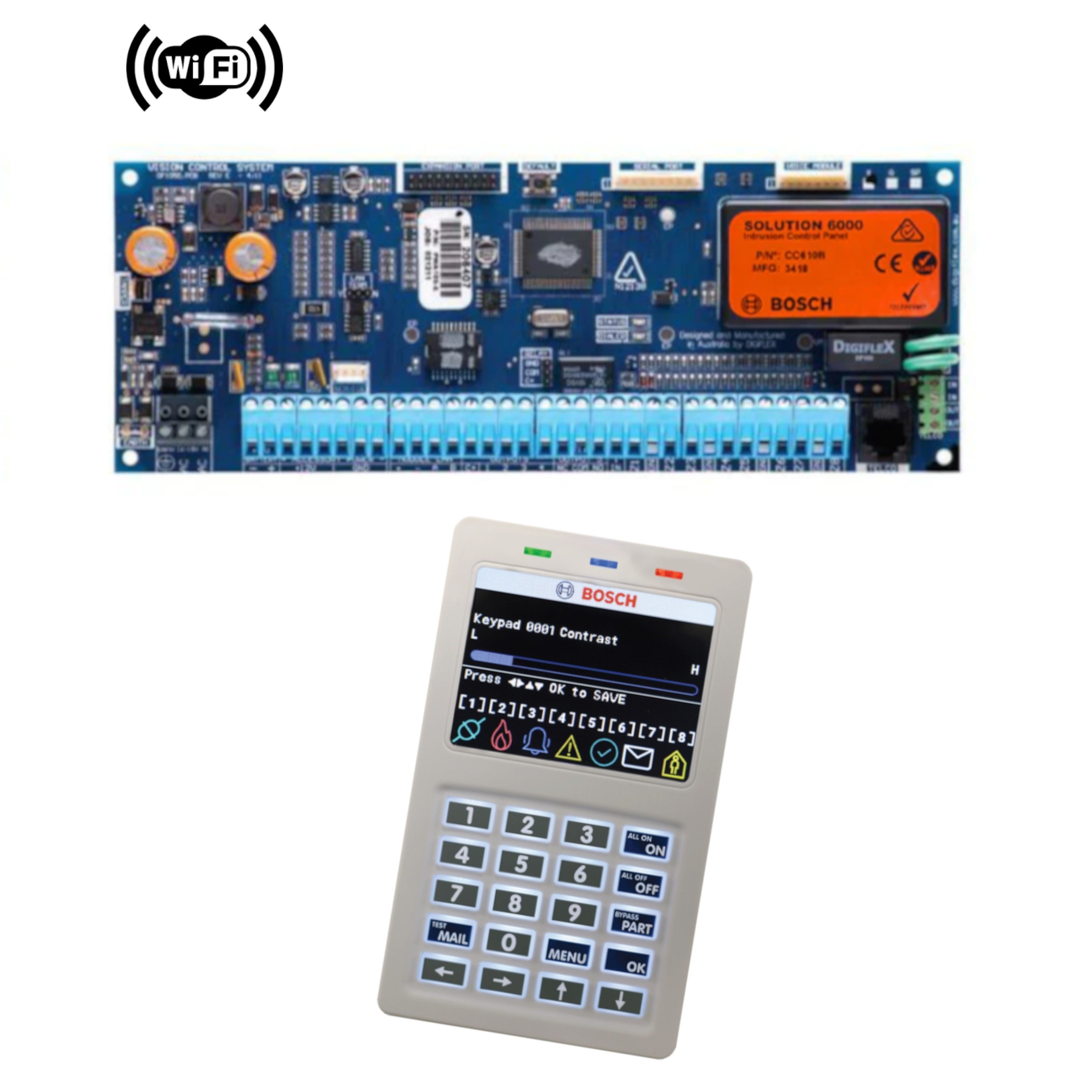

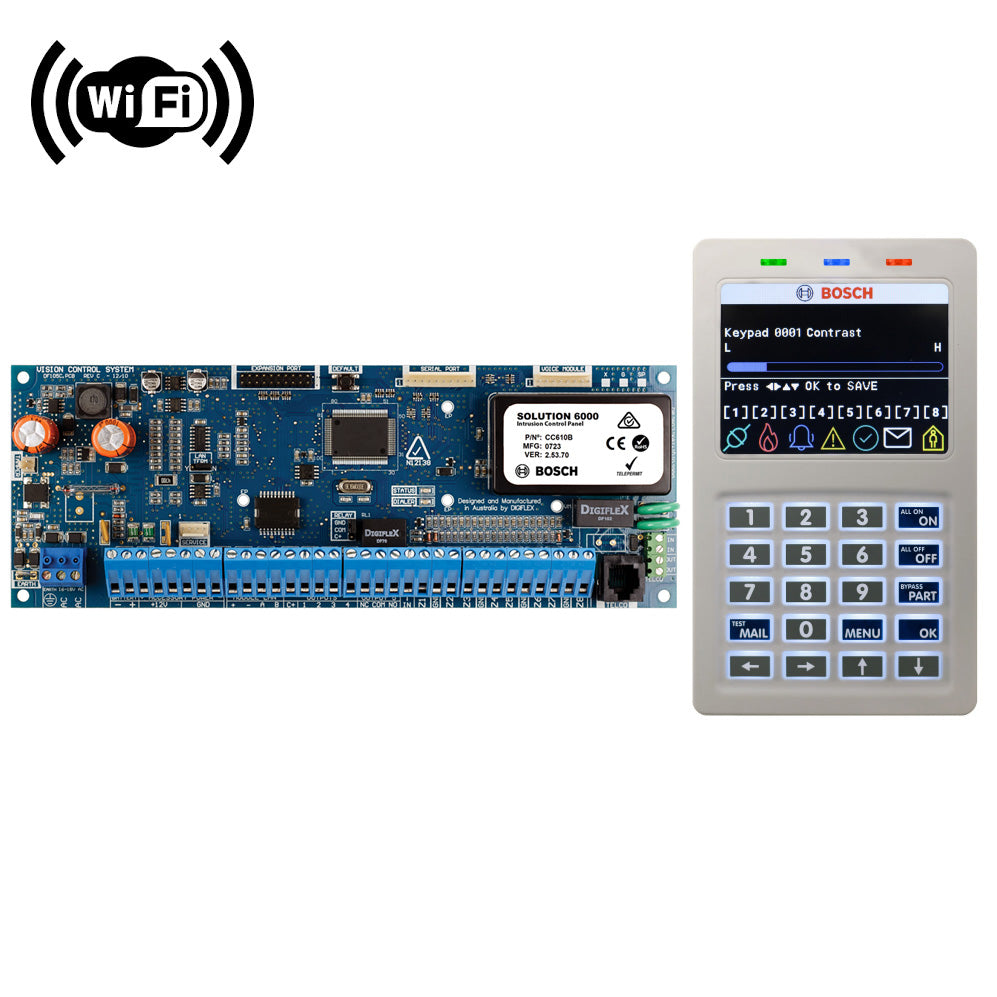

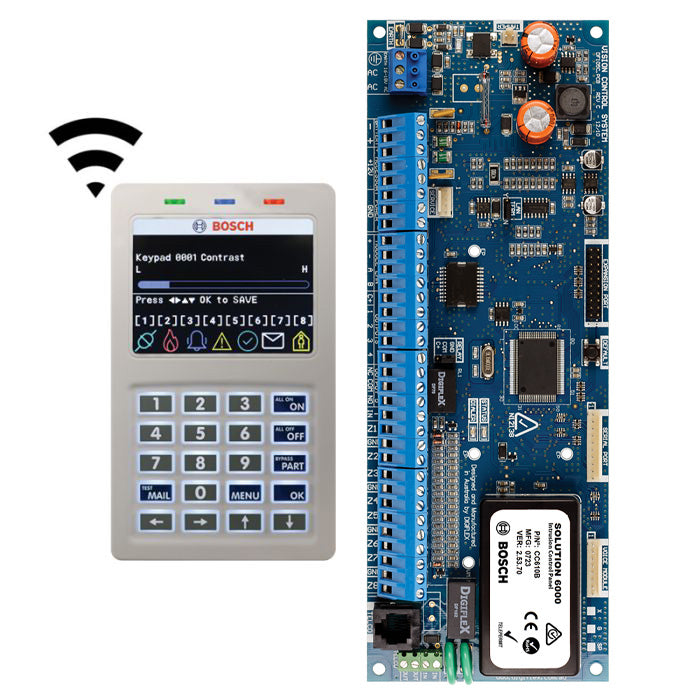

Bosch Solution 6000 PCB Only + CP737B White Graphic Colour WiFi Keypad With Integrated Smart Card Reader (Fob: PR301, ISO Card: PR350)

by Bosch

Notify me when back in stock

WiFi Keypad Kit Bosch Solution 6000 PCB WIth CP736B White 3.5" WiFi Colour Keypad | F.01U.287.312

Bosch 3.5" WiFi Colour Keypad

  •  3.5” Color graphical display with LED backlight
  • 40bit MiFare smart card reader built-in
  • 802.11 b/g/n Wi-Fi connectivity built-in
  • Alpha-numeric text prompting/programming
  • Customizable Installer banner display

CC610P Solution 6000 Control Panel

  • 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
  • Integrated access control for up to 16 doors
  • Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
  • 5 on-board outputs (expandable to 37)
  • GSM/GPRS and Ethernet options

CP737B WiFi Keypad Specifications

ConnectivityProprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported
Wi-Fi ConnectivityIEEE 802.11n; IEEE 802.11g; IEEE 802.11b
Power+12VDC, 110mA Max (LAN powered +9VDC - +16VDC)
Operating temperature (°C)0 °C – 55 °C
Operating relative humidity, non-condensing (%)5% – 85%
Dimension (H x W x D) (mm)149 mm x 88 mm x 21.5 mm
Display colorColor

CC610P Control Panel Specifications

16 - 18 VAC
Users256 Users
Zone16 x Zones, Expandable up to 144 Zones
Output5 x Output, Expandable up to 37 Zones
Maximum RF Zones144 Wireless
Max 8 Areas
Maximum Doors16 Doors
Maximum Keypads16 Keypad
Maximum RF Zones144 Wireless
Max 8 Areas

Display colorColor
