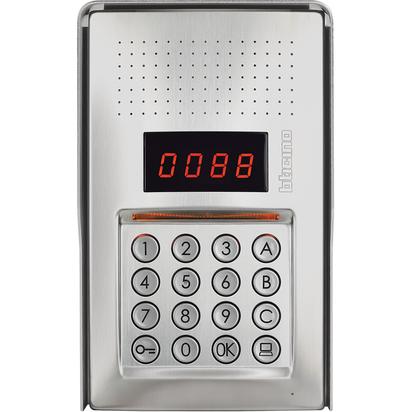

Linea 100 two wires audio digital call pushbutton panel for wall mounted installation. The device consists in a pushbutton panel with 16 keys and a digital display for displaying the operating status. Through the recognition of previously saved numerical (SCS addresses) or alphanumerical codes (logic addresses), it can be used to call handsets, and to give residents the possibility of opening the door lock using a dedicated numerical code. The pushbutton panel can manage up to 4000 handset addresses (from 0 to 3999), and the direct call to the 2 WIRES switchboard. It has an internal contact (C – NO – NC) for the connection of an electrical door lock, or an external actuator (for the powering of the electrical door lock use an auxiliary transformer, item 336842). Connection (PL) for a local door lock release pushbutton. System power supply cuts do NOT cause the loss of memory data.


Protection index
229 mm
138 mm
42 mm
Numbers of calls
Series EN
Linea 100
Please Contact Zankap
