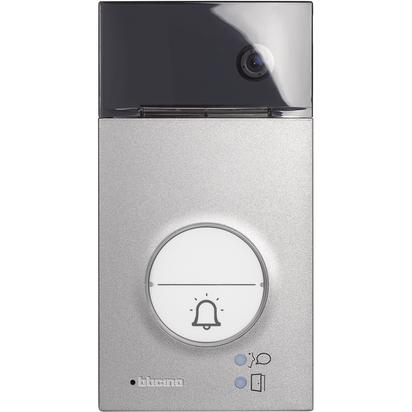

**SUPPLY DELAY (15 MAR)** Bticino 2W Linea 3000 Video External Unit With Proximity Reader And Kit Of Coloured Key Cards And Two Door Lock Release Clear Discs

by Bticino
SKU 343091

Notify me when back in stock

Linea 3000 wall mounted 2-Wires video pushbutton panel with Zamak front cover, wide angle colour camera and proximity reader. Fitted with white LED for the lighting of the shooting field in low light conditions. Can be set up for one or two family installation. It provides the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current, 30 ohm max). Can manage a maximum of 20 badges (125 KHz) for electrical door opening (master system badge included). White LED backlit name plate. Protection degree IP54 – protection against mechanical impact IK10. Supplied 1 set of door opening badges made up of : 6 coloured badges and 2 clear discs.

Protection index
IP54
Height
190 mm
Width
100 mm
Depth
26,65 mm
Numbers of calls
2
Series EN
Linea 3000
