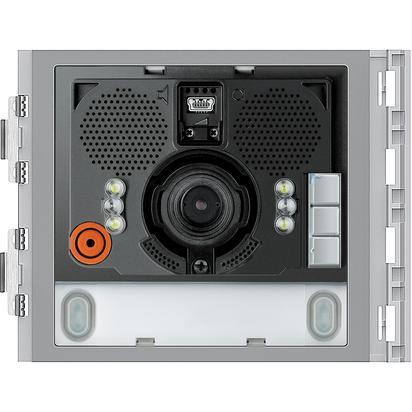

Sfera Audio video module suitable for 2 wires colour video systems

  • Fitted with colour camera with 1/3” sensor and white LEDs for the lighting of the shooting field
  • Mist prevention heating resistance
  • Loudspeaker and microphone volume adjustments
  • It can manage up to 98 pushbutton calls using the additional double row pushbutton modules
  • Horizontal and vertical camera position adjustment, +/- 10° in both directions
  • It offers the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive - 250 mA holding current 30 Ohm max) and of connecting a local door lock release pushbutton on clamps PL
  • Preset for additional power supply
  • Fitted with front LEDs for the notification of the operating status: door lock release, communication active, call put through, and system busy
  • Integrated optic sensor for the switching on of the night backlighting
  • To be completed with surround plate
  • The device must be configured physically or using a PC and the TiSferaDesign software


91 mm
115 mm
N° of modules
Series EN
