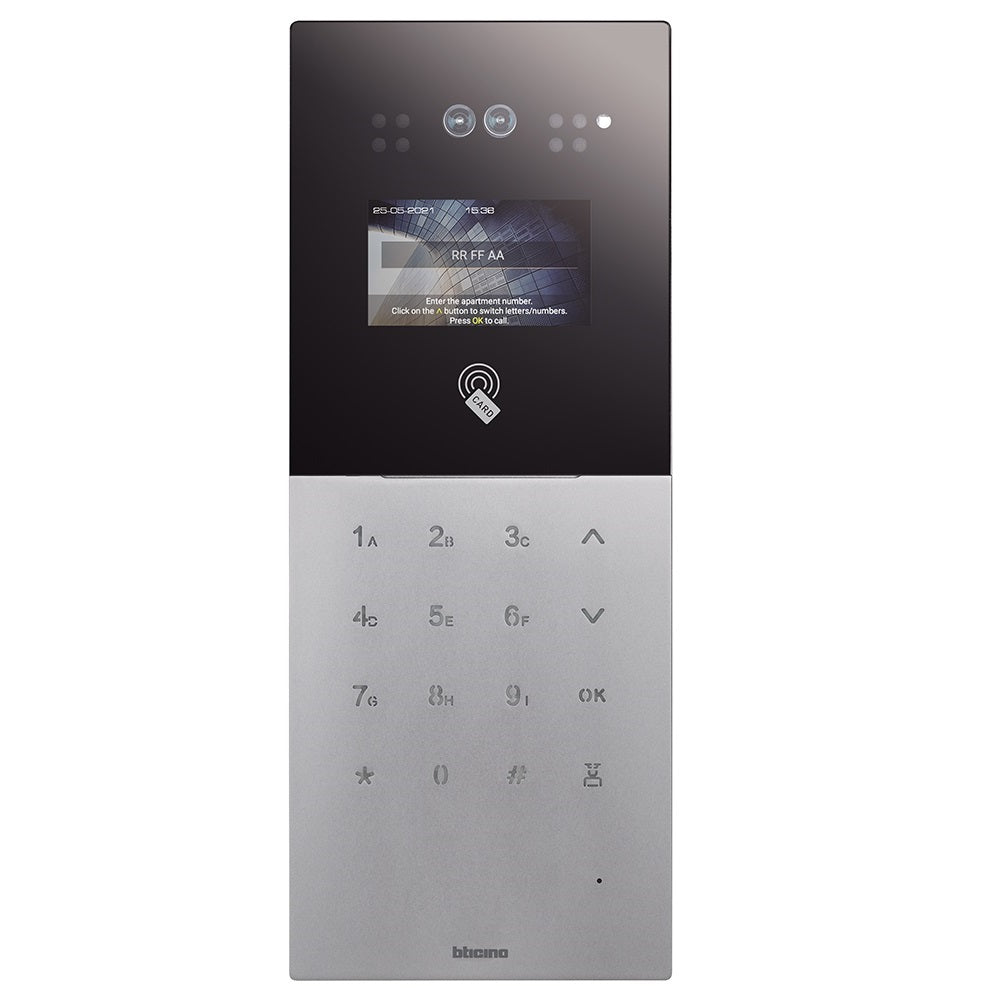

Bticino* IP 4.3" Touch Keypad External Station With Card Reader. Includes Flush Mount Box. IP54, IK07

by Bticino
SKU 374003

Notify me when back in stock

Video entrance panel with 4.3” display, keypad with numbers and letters (A-I) and badge reader for access control functions.

  • The entrance panel can be PoE (power over Ethernet) powered, or directly powered using power supply 375005.
  • Flush mounted installation using the dedicated box 375006.
  • Configuration of different calling modes:

           - Apartment code (Area - Building - Riser - Floor - Apartment)

           - Resident’s alphanumeric code.

  • Possibility to upload customized screensavers and advertisements using the configuration software.
Brand
BTicino
Rated voltage
24Vdc
Protection index
IP54
Dimensions
400 x 160 x 58mm
Height
400mm
Width
160mm
Depth
58mm
Max section
0,8mm
Plant type
IP
Connection
RJ45
Degree of robustness
IK07
Recommended installation height
160 - 165cm
Operating temperature
(-40°) - (+70°)C
Field of view (in degrees)
80° H - 53°V
Resolution
1080p
Facial recognition distance
30 - 80cm
Color
Silver
Series EN
IP Door Entry System
