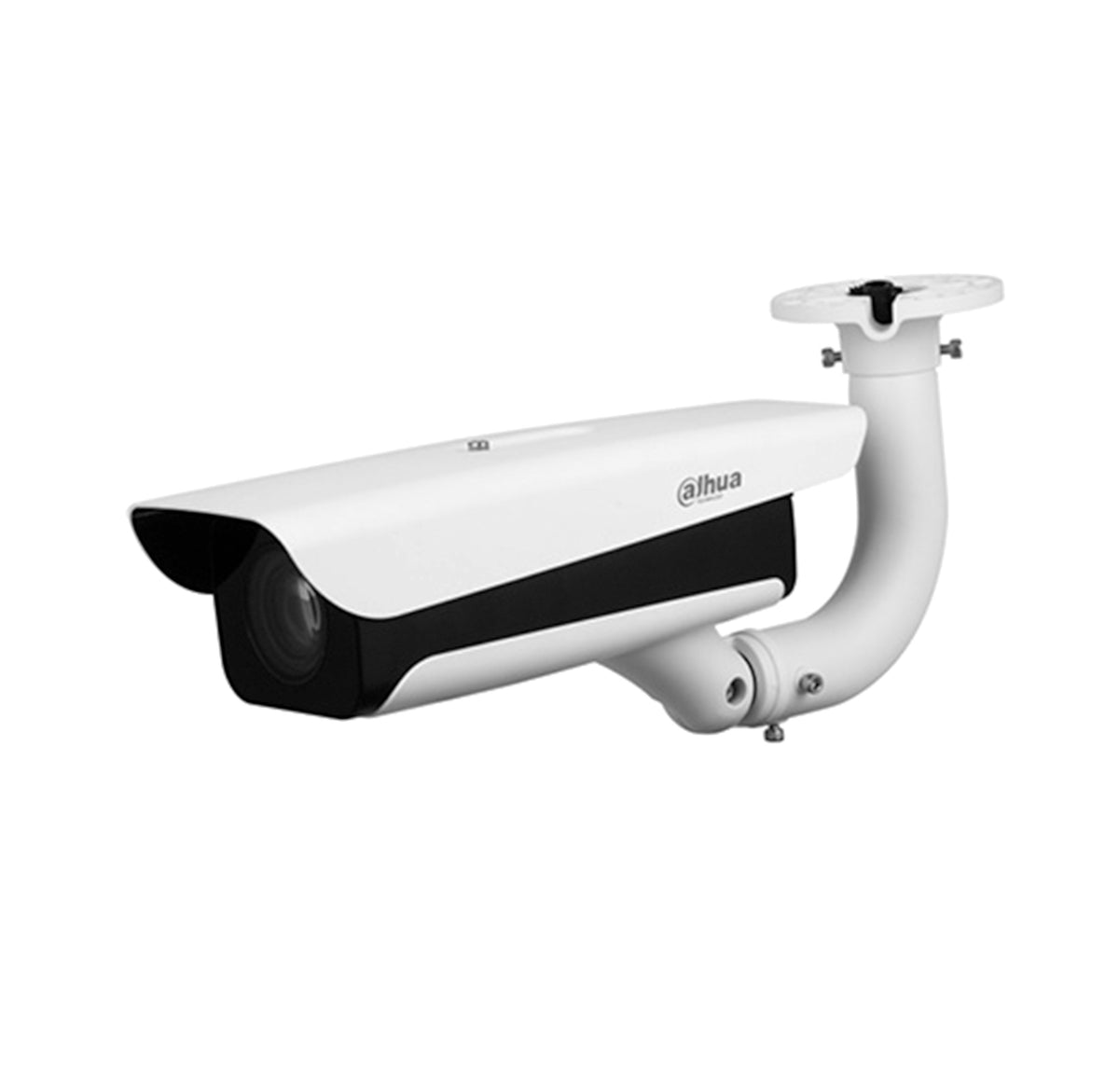

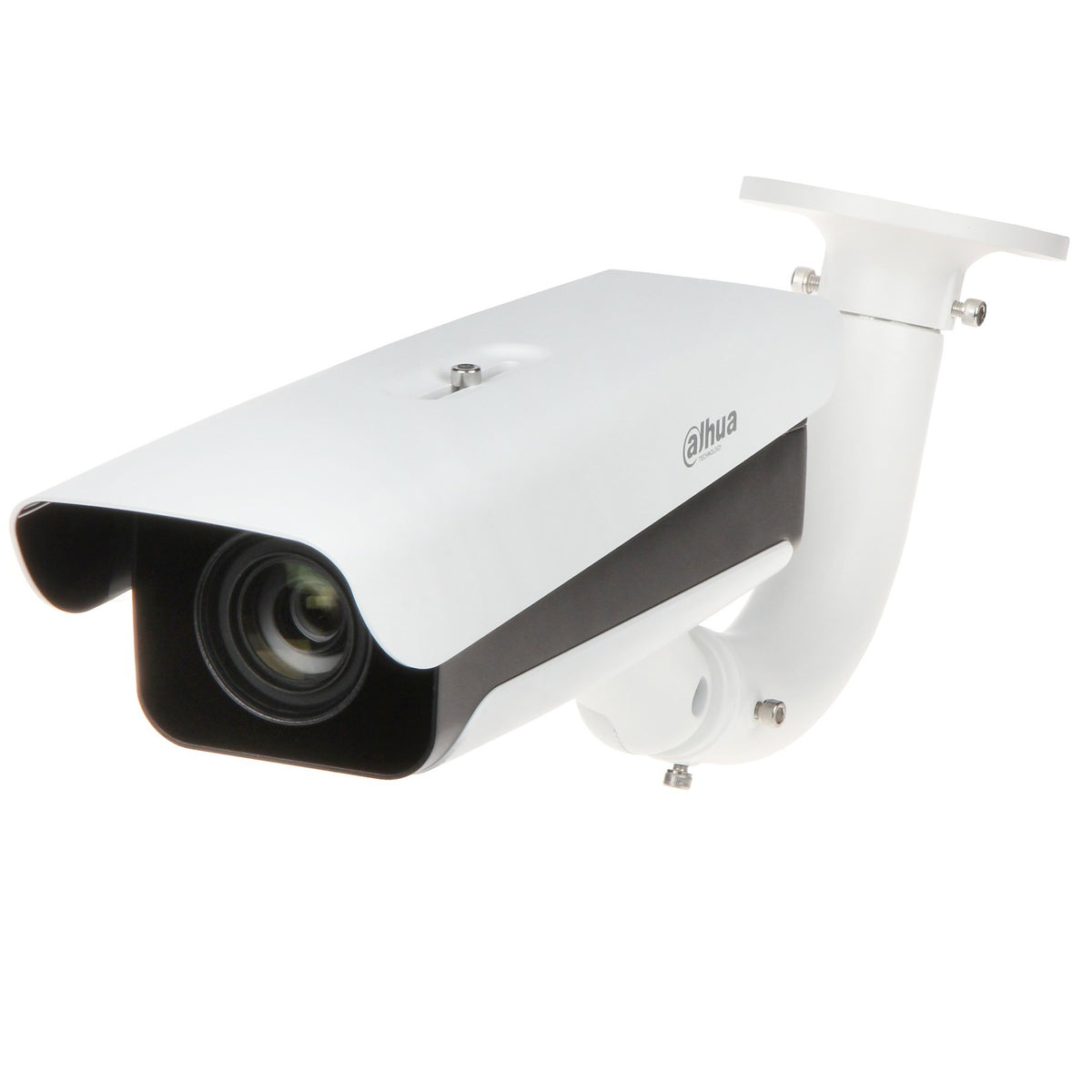

Dahua* 2MP IP ANPR AI Series IR Motorised Bullet Camera, 10-50mm Lens, 96dB WDR, 30m IR, H.265, POE / 12VDC / 24VAC, IP67, Detection Range Up To 30m With Speed Up To 60KM/H, Includes Bracket

by Dahua
SKU ITC237-PW6M-IRLZF1050-B

Notify me when back in stock

2MP Long Range Access ANPR Camera

  • CMOS image sensor
  • Video compression standards: H.265/H.264M/H.264H/H.264B/MJPEG
  • Integrated design, IP67

Image Processing

Illuminator

6 IR illuminators (brightness adjustable)

Image Sensor

1/1.8'' CMOS

Image Resolution

1920 × 1080 (OSD black strip excluded)

Video Resolution

Main stream: 1080P (1920 × 1080) / 720P (1280 × 720)
Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream: (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)

Bit Rate

H.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps

Video Encoding

H.264B/H.264M/H.264H/H.265/MJPEG

Image Encoding

JPEG

Noise Reduction

3DNR

White Balance

Full auto; auto color temperature range; customized color temperature

Electronic Shutter

1/50–1/10000, auto or manual

Wide Dynamic Range

96db

Edge Enhancement

Yes

Exposure Mode

Full auto; customized auto; customized

Iris

Auto iris (W:1.3–T:2.3)

Function

Trigger Mode

Video detection; I/O coil; video detection and I/O coil

Shutter

Single shutter

Storage

1 built-in TF card port. Kingston 16G, 32G and 64G; Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G

Image Tampering Prevention

Yes. Video/picture can be checked through watermark and verification

Max Illumination Distance

30 m (98.43 ft)

Capture Range

8 m–30 m (26.25 ft–98.43 ft)

Detected Lane Width

6 m –7 m (19.69 ft–22.97 ft)

Min Ambient Illuminance

0.002 Lux. Illuminator is designed with the camera for illumination

Max Speed that the Camera Detects

60 km/h

Alarm Event

Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access

Security Mode

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

ANR (Automatic Network Replenishment)

Yes. Platform/FTP

Auto Register

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥99%

Vehicle Recognition

Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without plate. Vehicle recognition rate ≥95%

Video Metadata

Yes

Intelligent Track Frame

Intelligent frame display. Supports displaying vehicle plate and vehicle path

Ports

Lens

Lens in the camera module

Analog Output

1

Ethernet Port

1 100/1000M Ethernet port (RJ45)

RS-485 Port

2

RS-232 port

1

Alarm Input

3, optocoupler input (switch quantity)

Alarm Output

3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers

Audio Input

1-channel RCA port

Audio Output

1-channel RCA port

General

Power Supply

12V DC, 24V AC, PoE+

Power Consumption

< 20W

Working Temperature

−30°C to +65°C (−22°F to +149 °F)

Working Humidity

10%–90% (no condensation)

Housing

Metal and plastic

Protection Grade

IP67

Dimensions (L×W×H)

515.2mm×124.7mm×183.2mm (20.28''×4.91''×7.21'')

Net Weight

1.9kg (4.19lb)

Gross Weight

3.3kg (7.28lb)

Installation

Universal joint installation

Lens

10mm–50mm (0.39''–1.97'')

Certification

CE, FCC

Yes

RoHS

Yes
