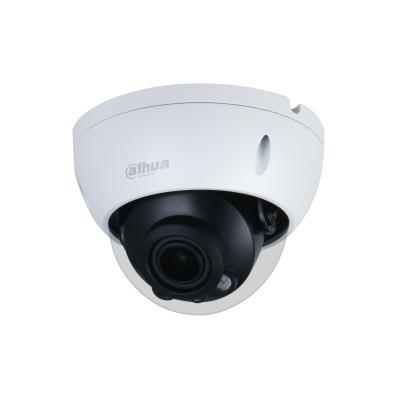

Dahua 5MP IP WizSense AI Series IR Vandal Dome, SMD, Perimeter, Starlight, 2.7-13.5mm, 120dB WDR, 40m IR, POE / 12VDC, IK10, IP67, MicroSD (Wall Mount: PFB203W, Junction Box: PFA137)

by Dahua

Notify me when back in stock

> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

> H.265 codec, high compression rate, low bit rate

> Built-in IR LED, max. IR distance: 40 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

> Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card

> 12V DC/POE power supply

> IP67, IK10 protection

> SMD Plus


Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)


128 MB


512 MB

Scanning System


Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.5 (Color, 30IRE)

0.0005 Lux@F1.5 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control


Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°; Tilt: 0°–75°; Rotation: 0°–355°


Lens Type

Motorized vari-focal

Mount Type


Focal Length

2.7 mm–13.5 mm

Max. Aperture


Field of View

Horizontal: 99°–26°
Vertical: 72° –20°
Diagonal: 133° –33°

Iris Type


Close Focus Distance

0.8 m (2.6 ft)

DORI Distance
