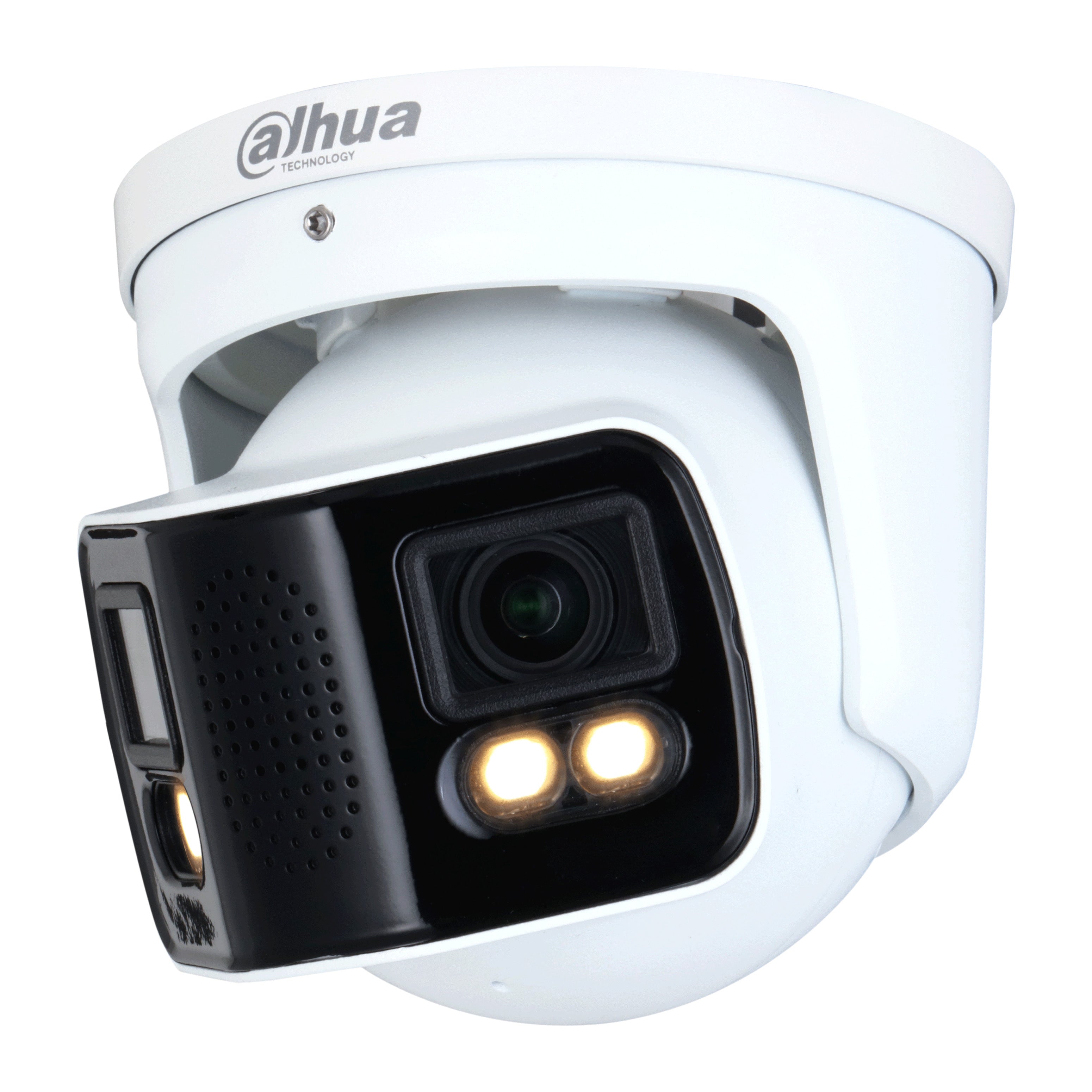

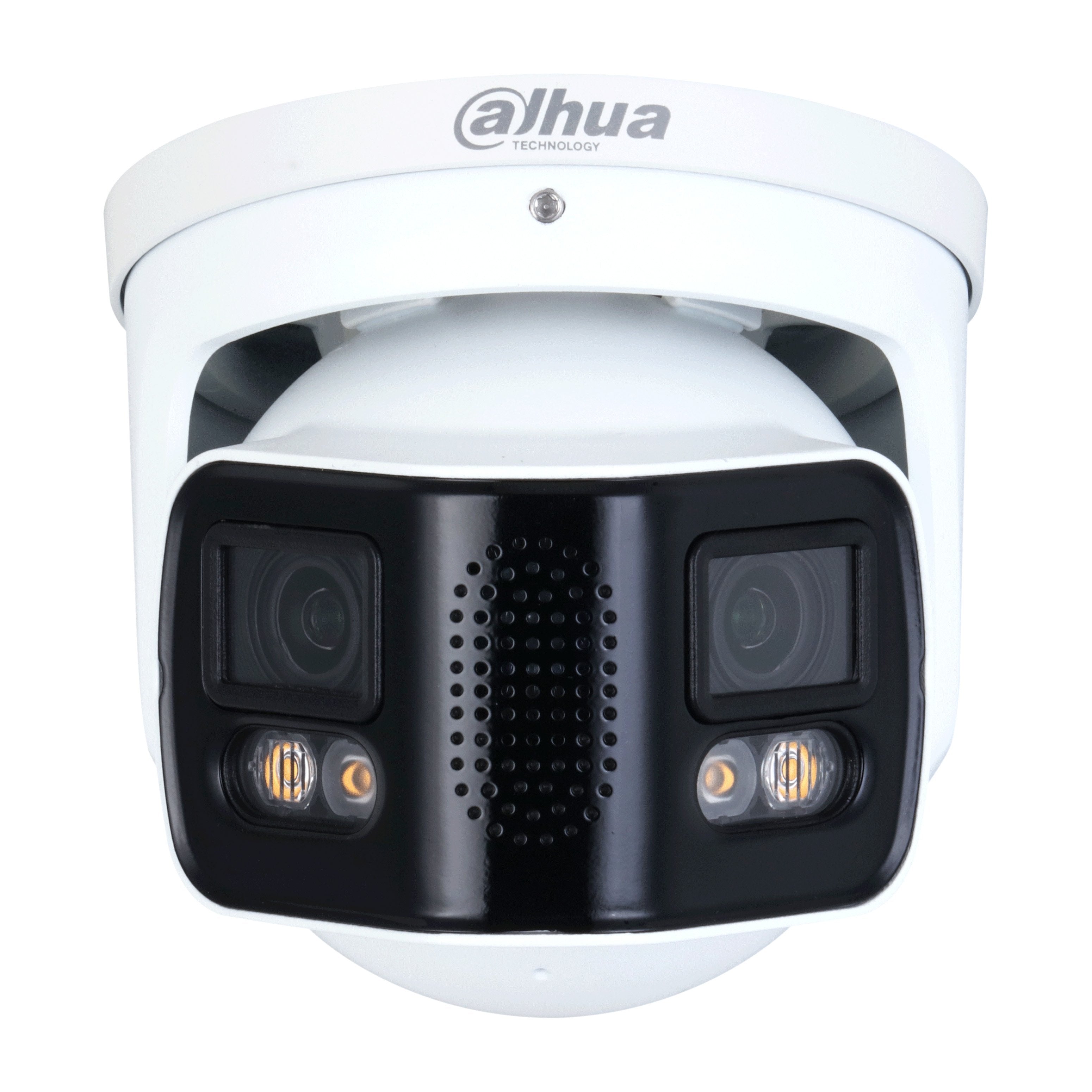

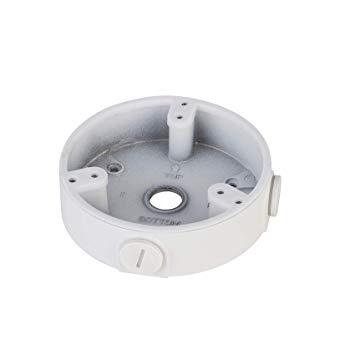

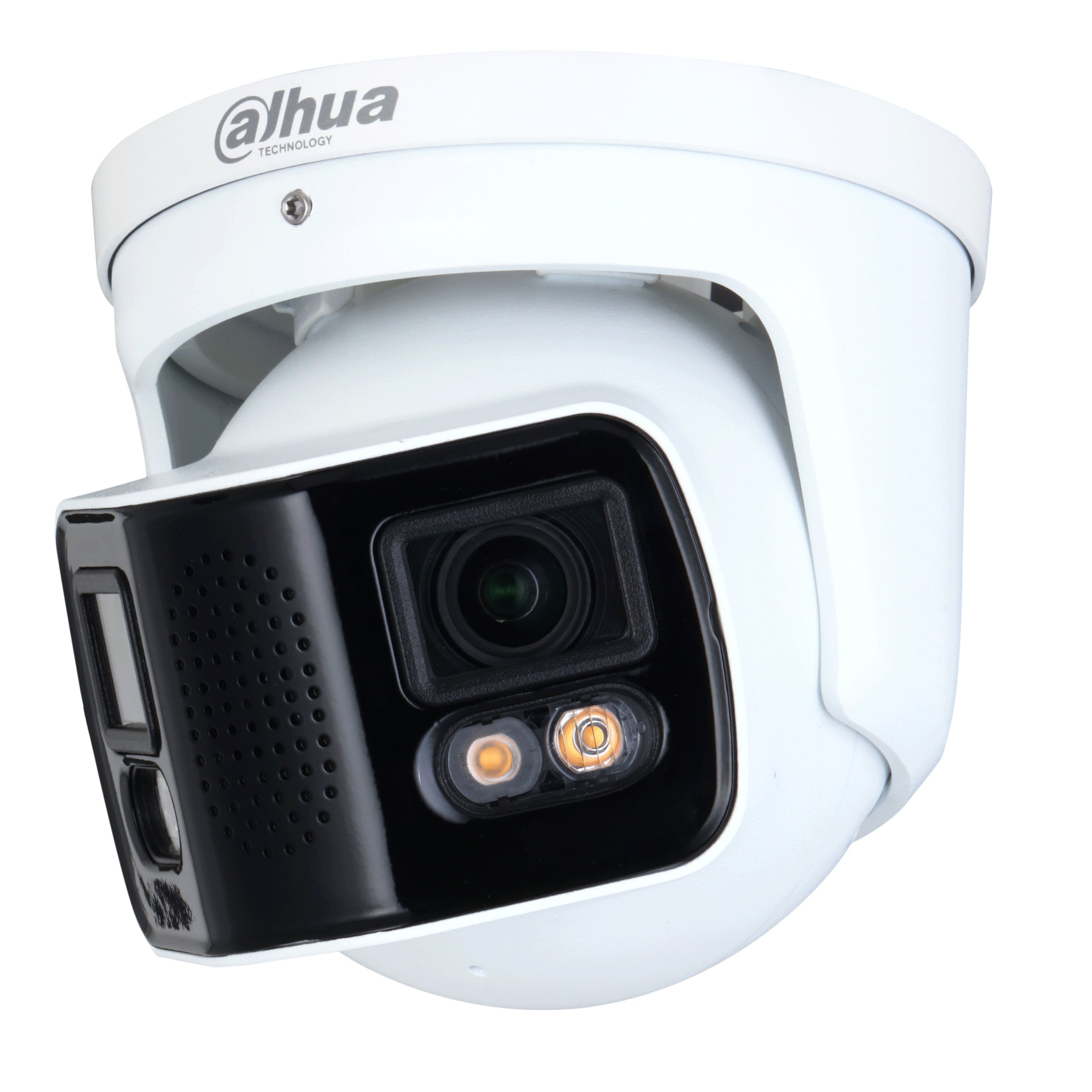

Dahua 2 x 4MP IP WizMind AI Series Full Colour 180 Degree Wide Angle Turret Camera, SMD, Perimeter, People Counting, 140dB WDR, 40m White Light, ePOE / 12VDC, IP67, MicroSD, Built-in Mic / Speaker, EPTZ (Wall Mount: PFB203W, Junction Box: PFA137)

Camera

Image Sensor

Dual 1/1.8" CMOS

Max. Resolution

4096 (H) × 1800 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 4°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

3.6 mm

Field of View

Horizontal: 180°; Vertical: 48°

Max. Aperture

F1.0

Iris Control

Fixed

Close Focus Distance

3.6 m (11.81 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

70.3 m (230.64 ft)

28.1 m

(92.19 ft)

14.1 m

(46.26 ft)

7.0 m

(22.97 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Heat Map

Yes

Smart Object Detection

Smart abandoned object; smart missing object

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

WDR Off:

Main stream: 4096 × 1800 @ (1–25 fps)

sub stream: 1024 × 452 @ (1–25 fps)

third stream: 1920 × 832 @ (1–25 fps)

WDR On:

Main stream: 4096 × 1800 @ (1–20 fps)

sub stream: 1024 × 452 @ (1–20 fps)

third stream: 1920 × 832 @ (1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 9 kbps–8192 kbps
H.265: 9 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Privacy Masking

4 areas

Defog

Yes

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 8 and later
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channels in: 5 mA 3 V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%)/PoE+ (802.3at)/ePoE

Power Consumption

Basic: 4.8 W (12 VDC); 5.5 W (PoE)

Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

Φ122 mm × 131.9 mm (Φ4.80" × 5.19" )

Net Weight

990 g (2.18 lb)

Gross Weight

1150 g (2.54 lb)
