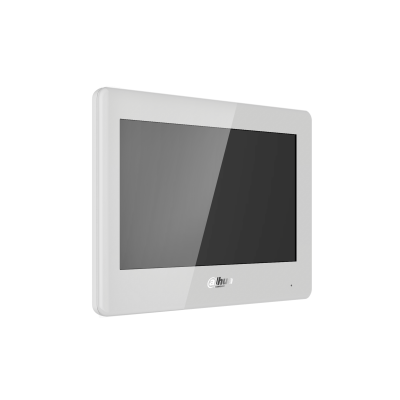

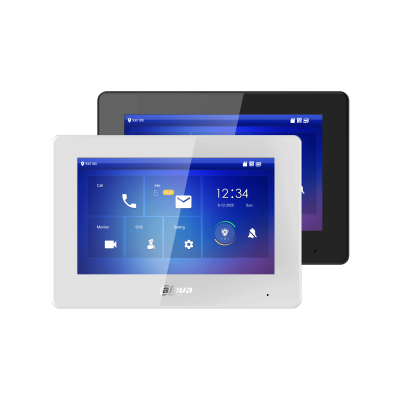

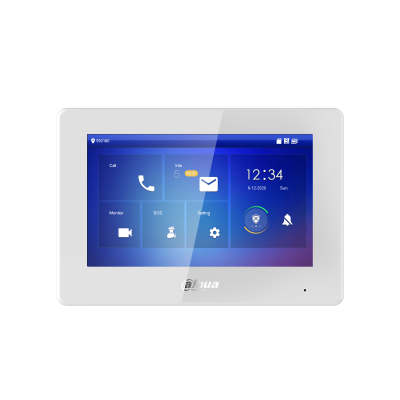

Dahua* IP / 2-Wire 7" WHITE Internal Station, Capacitive Touchscreen, IPC Surveillance, Alarm Integration, Standard POE Or 2-Wire Interface (VTNS2003B-2 Needed)

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 Bit

Function

Communication Mode

Digital 2-wire

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 3

Apartment: 2

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Storage

Micro SD card (up to 64 GB)

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V/200 mA)

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected)

Alarm

SOS

Yes

General

Color

White/Black

Power Supply

48 VDC 1.25 A

Installation

Surface mount

Certifications

CE; FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%-95% RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ≤ 2 W; working ≤ 6 W

Net Weight

0.35 kg (0.78 lb)

Gross Weight

0.56 kg (1.23 lb)
