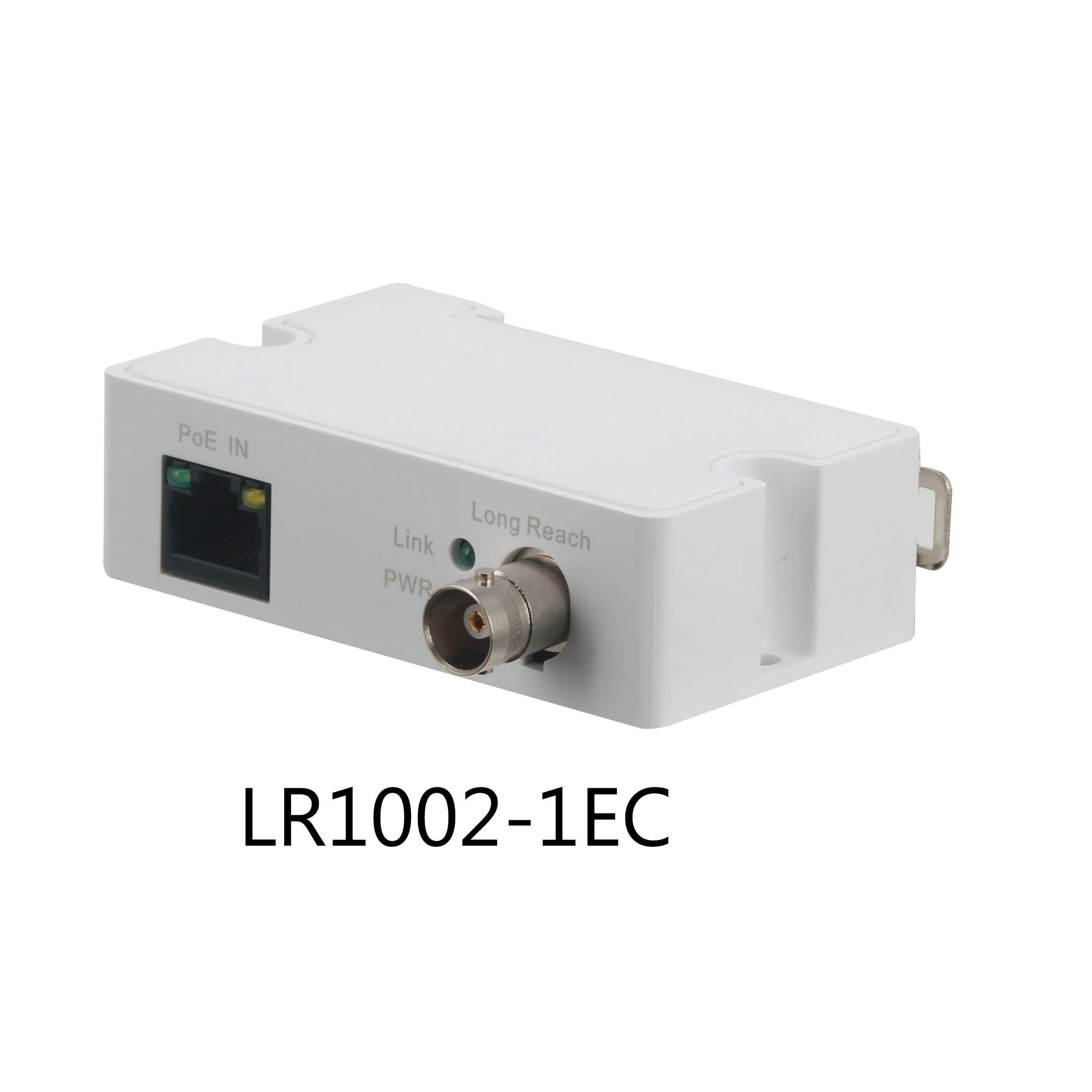

Dahua Single-Port Long Reach Ethernet Over Coax Extender Receiver (Requires DH-LR1002-1ET) **MAY REQUIER POE SWITCH**

by Dahua
SKU DH-LR1002-1EC

Notify me when back in stock

Please Contact Zankap

Technical Specification

Model

LR1002-1EC


Function Port

1*10/100 Mbps Base-TX

1*BNC

Power Consumption

<2W

Transmission Bandwidth

RG59 coaxial cable:

400m/100Mbps, 1000m/10Mbps

PoE Protocol

IEEE802.3af, IEEE802.3at

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Operating Temperature

-30°C-65°C

Operating Humidity

5%~95%

Weight

61g

Dimension (W×D×H)

79mm×52mm×23mm

Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)

LR1002-1ET/LR1002-1EC

Supports with 53V


100m

Bandwidth (Mbps)

100


Load Capacity (W)

25.5


200m

Bandwidth (Mbps)

100


Load Capacity (W)

24


300m

Bandwidth (Mbps)

100


Load Capacity (W)

19


400m

Bandwidth (Mbps)

100


Load Capacity (W)

16


500m

Bandwidth (Mbps)

10


Load Capacity (W)

13


800m

Bandwidth (Mbps)

10


Load Capacity (W)

8


1000m

Bandwidth (Mbps)

10


Load Capacity (W)

6
