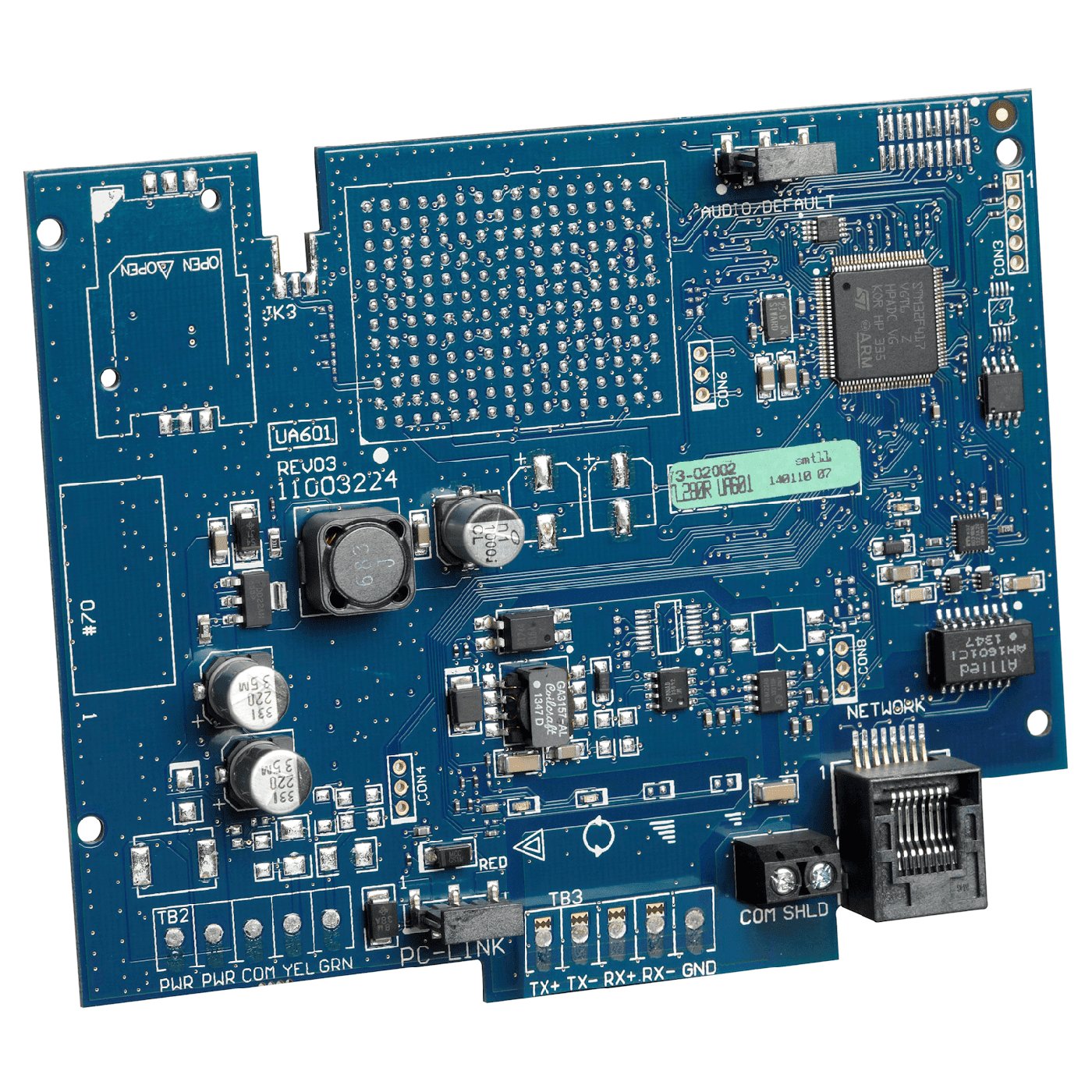

DSC PowerSeries NEO Internet Alarm Communicator, Support SIA Format

by DSC

SKU DSCTL280E

Panel remote uploading/downloading via Internet
Fully redundant Internet alarm communication
Integrated call routing
Programmable using DLS 5 or keypad
Supervision heartbeat via Internet
128 Bit AES Encryption
Full event reporting
SIA and Contact ID protocol
Visual verification over Internet
Communicator can be housed in separate cabinet using PCL-422 Communicator Remote Mounting Module
Supports 3rd party integration via IP
R model supports 3rd party integration option via RS232 serial connection
Mobile app : CONNECT ALARM

Model	TL280(R
Power Supply Ratings
Input Voltage	10.8-12.5 VDC Power is supplied from the panel’s PC-Link header or a PCL-422 module in remote cabinet installations. In remote cabinet installations, the PCL-422 module located with the communicator is powered by either an HSM2204 or an HSM2300. Refer to the PCL-422 installation instructions for details.
Current Consumption
Current	100mA @ 13.66V
Environmental Specifications
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	5% ~ 93% relative humidity, non-condensing
Mechanical Specifications
Mechanical Specifications	100 × 150 × 15
Weight (grams) with bracket	290
