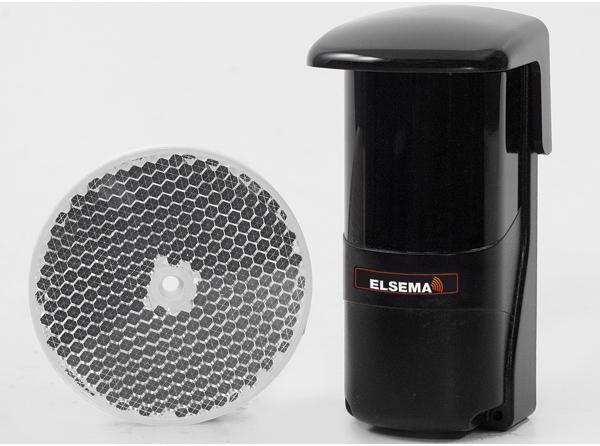

The PE1500 is a polarised ultra sensitive, long range, retro-reflective photoelectric beam. The sensor module uses a modulated beam which stops interference from the sun and can be used outdoors to 12 metres. It works with any Elsema type automatic gate or door controller cards used on sliding, swing or roller doors. It is used as a safety device to control automatic gates and doors.
  • Power Source: 12 to 250 Volts AC/DC
  • Standby: 19mA at 24Volts DC
  • Response Time: 10 millisecond
  • Connection: Plug in type terminal block
  • Additional feature: Normally closed (NC) Tamper output
  • Operating Temperature: -20 ̊C to 60 ̊C
  • Relay Output: Common, Normally Open or Normally Close: 0.5 Amps / 120VAC
  • Useable Operating Range: 18 metres indoor and 12 metres outdoor range
  • Dimensions: 122 (L) x 61(W) x 62(D) mm
